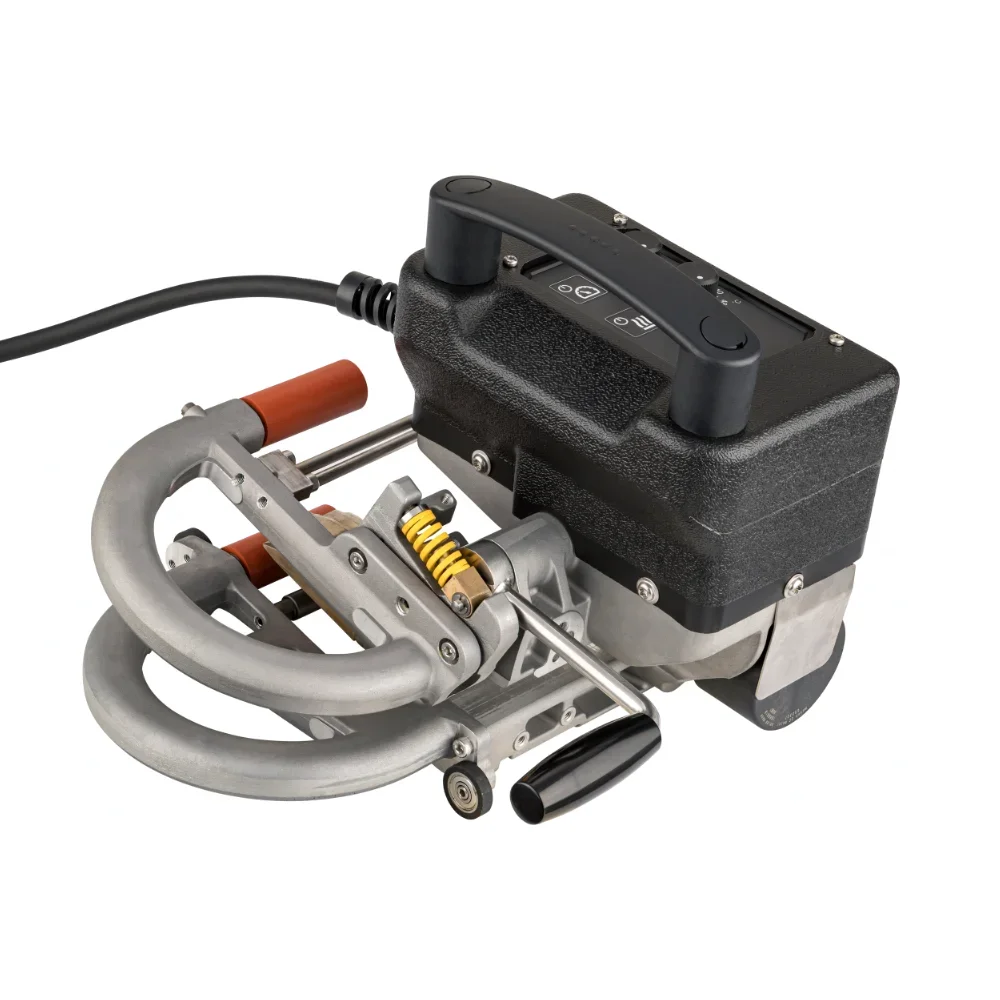

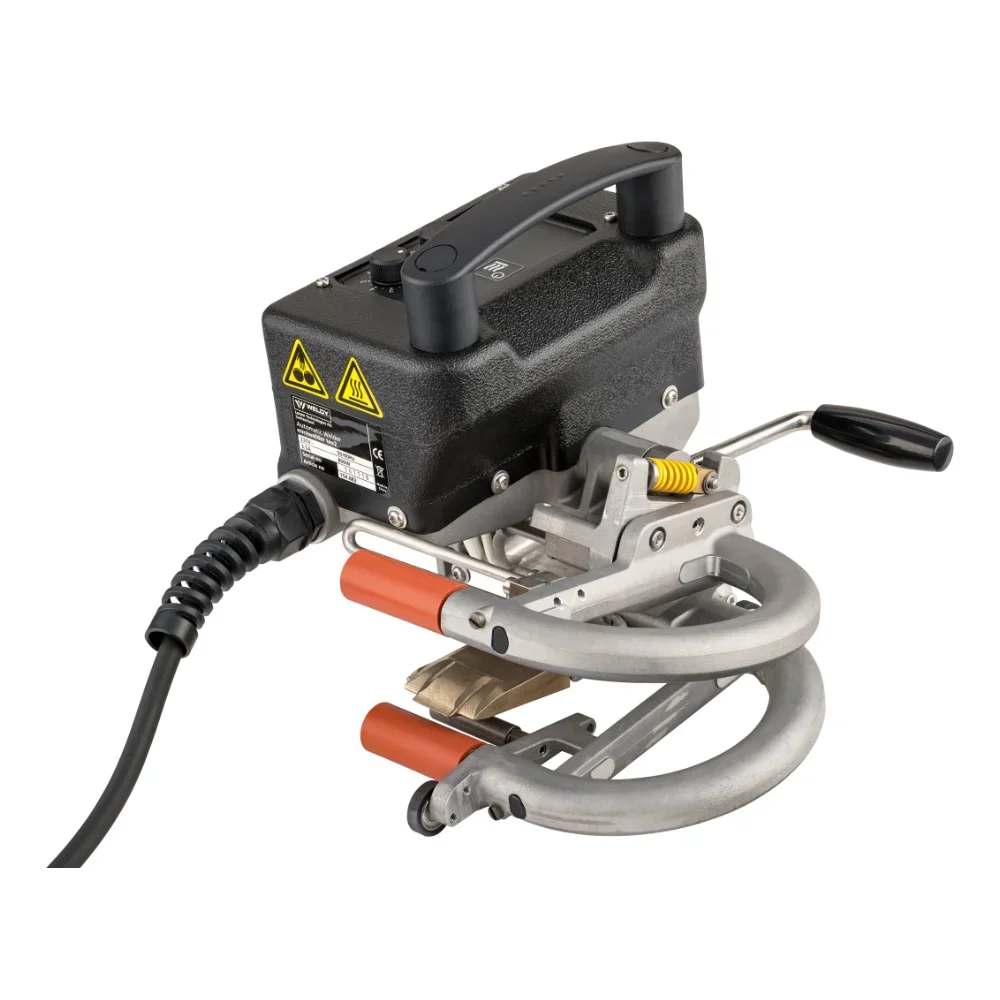

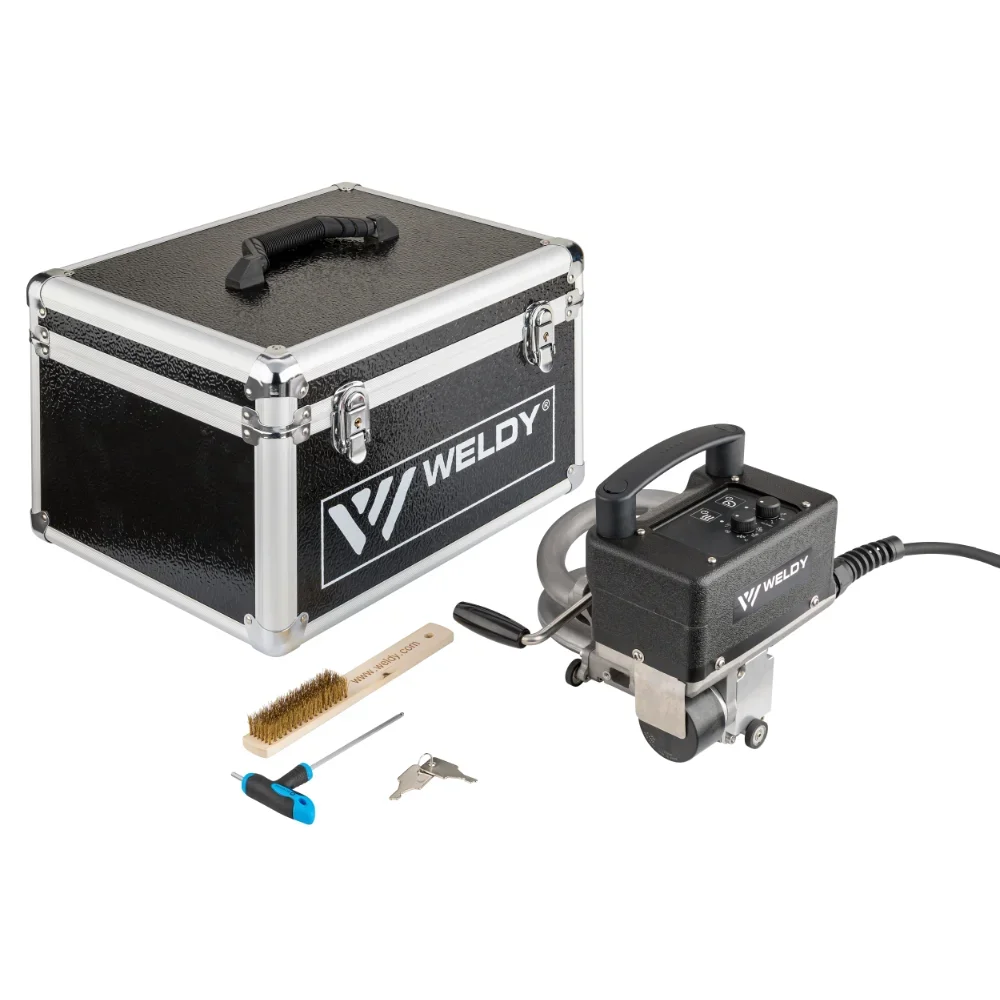

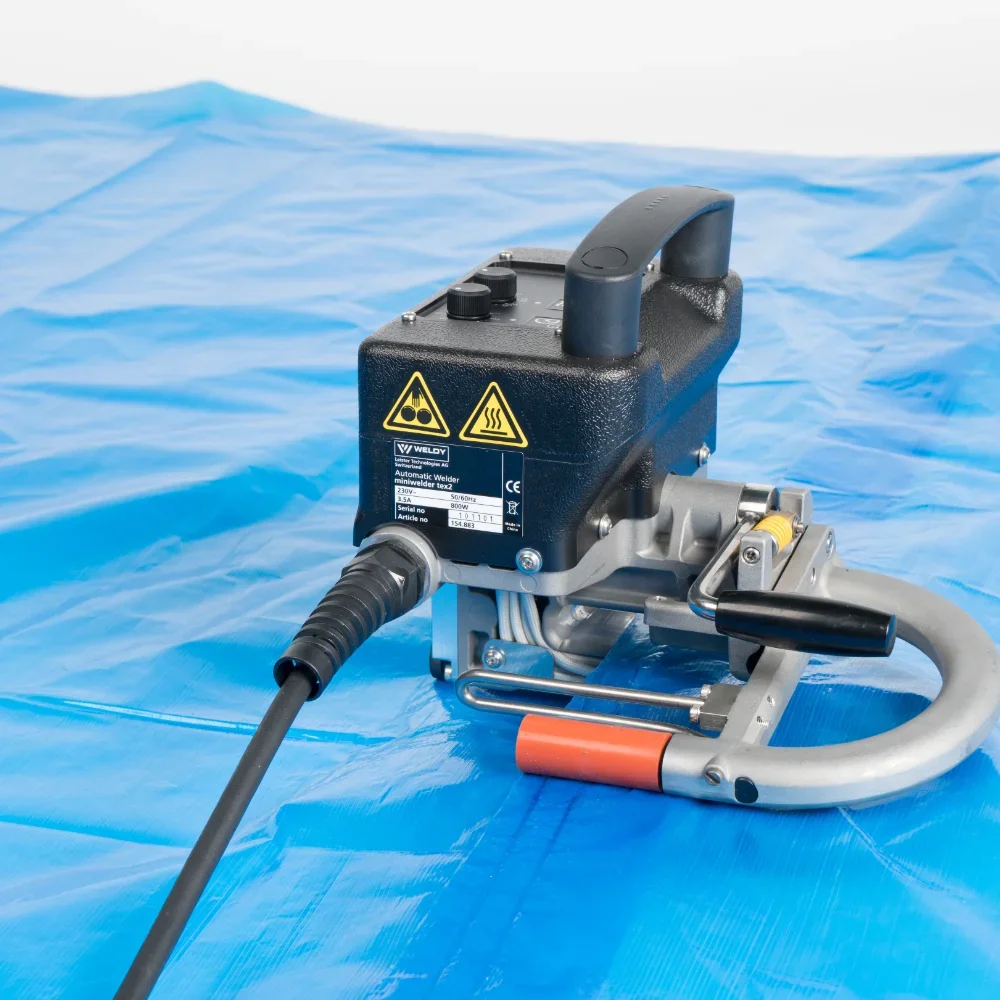

Weldy miniwelder tex2 Hot Wedge Welder for Tarpaulins and Thin Membranes
A compact hot wedge welding machine for clean, consistent overlap seams in tarpaulins, banners, awnings and other thin membranes.
- Brand
- Weldy
- Category
- Plastic Welding Equipment
- Model
- miniwelder tex2
- Type
- Individual product
- Welds membranes from 0.1 to 1 mm thick
- PE, PP, PVC, TPO and TPU materials
- Speed adjustable from 0.4 to 7.5 m/min
- Temperature range of 60–480 °C
- 3.6 kg with chain-free drive technology
- Stainless steel and copper wedge versions
- 100 mm maximum overlap
Description
The Weldy miniwelder tex2 is a lightweight automatic hot wedge welder for thin membranes and technical textiles. A 20 mm heated wedge melts the surfaces of the overlapping material, and a silicone roller presses the layers together as the machine drives along the seam. The result is a uniform overlap weld along the full length of the run.
Its optimised wedge geometry is designed for material from 0.1 to 1 mm thick, and an intuitive control system makes welding start-up easy. This makes the miniwelder tex2 well suited to tarpaulin fabrication, banner and signage production, and the manufacture of awnings, shades and protective covers.
Key Features and Benefits
Wedge geometry for thin material
Thin membranes are easy to overheat or distort. The miniwelder tex2 wedge is shaped for 0.1–1 mm material, so it covers the tarpaulin, banner and cover fabrics that heavier roofing and geomembrane welders are not designed for.
Chain-free drive and simple start-up
The drive system works without a chain, and the controls make starting a weld straightforward. Fewer moving parts and a simple start help operators produce consistent seams with minimal setup.
Light and portable
At 3.6 kg and 228 × 228 × 170 mm, the machine is easy to carry to the work and position on the material.
Wedge options for the material
The miniwelder tex2 is offered with a 20 mm stainless steel wedge or a 20 mm copper wedge. The stainless steel version covers PE, PP, PVC, TPO and TPU. The copper version covers PE, PP, TPO and TPU. Speed is adjustable from 0.4 to 7.5 m/min and temperature from 60 to 480 °C.
Applications and Use Cases
Applications for the miniwelder tex2 include:
- Tent tarpaulin welding: joining tarpaulin panels and seams.
- Advertising banner welding: overlap welds for printed banners and signage material.
- Awning and wind blocker welding: shading and screening textiles.
- Protective cover welding: covers for equipment and materials.
- Plastic fabric hoses welding: fabric hose seams.
- Pool waterproofing: thin pool liner membranes.
Technical Specifications
Common specifications
- Voltage
- 230 V
- Frequency
- 50/60 Hz
- Power
- 800 W
- Temperature
- 60–480 °C
- Speed
- 0.4–7.5 m/min
- Welding technology
- Hot wedge
- Hot wedge length
- 40 mm
- Hot wedge width
- 20 mm
- Maximum overlap
- 100 mm
- Roll material
- Silicone roller, 50 Shore A
- Display
- No
- Weldable material thickness
- 0.1–1 mm
- Length
- 228 mm
- Width
- 228 mm
- Height
- 170 mm
- Weight
- 3.6 kg
- Power cable length
- 3 m
- Protection class
- I
- Country of origin
- P.R. China
Wedge versions
| Version | Hot wedge | Welding materials |
|---|---|---|
| Steel wedge | Stainless steel, 20 mm | PE, PP, PVC, TPO, TPU |
| Copper wedge | Copper, 20 mm | PE, PP, TPO, TPU |
Confirm the plug or site connection required for the miniwelder tex2 when ordering.
Request a quotation
Buy Miniwelder tex2 from Global Source Middle East
For tarpaulin fabricators, signage producers, and makers of awnings, shades and protective covers, consistent seams on thin material are the core of the job. The miniwelder tex2 automates the overlap weld on material from 0.1 to 1 mm, running long seams at a controlled speed and temperature instead of welding them by hand.
The wedge version is the main selection point. Choose the stainless steel wedge if your work includes PVC. Global Source Middle East supplies the miniwelder tex2 to fabricators and workshops in the UAE.
Frequently Asked Questions
What material thickness can the miniwelder tex2 weld?
Material from 0.1 to 1 mm thick. The achievable range depends on the material type and its properties.
Which wedge version should I choose?
The stainless steel wedge version welds PE, PP, PVC, TPO and TPU. The copper wedge version welds PE, PP, TPO and TPU. For PVC tarpaulins and banners, choose the stainless steel wedge.
