GSPF Roof Tile Spacers for Raised Rooftop and Patio Paving
Polymer spacers that lift rooftop and patio tiles to a uniform height, so water drains and the waterproofing layer is protected.
- Brand
- GSPF
- Type
- Individual product
- Raises tiles and slabs to a uniform height
- Promotes drainage beneath the surface
- Helps protect waterproofing layers from standing water
- Lets air move beneath the tile surface
- Heights of 13 and 19 mm
- Packed 100 or 150 pieces
Description

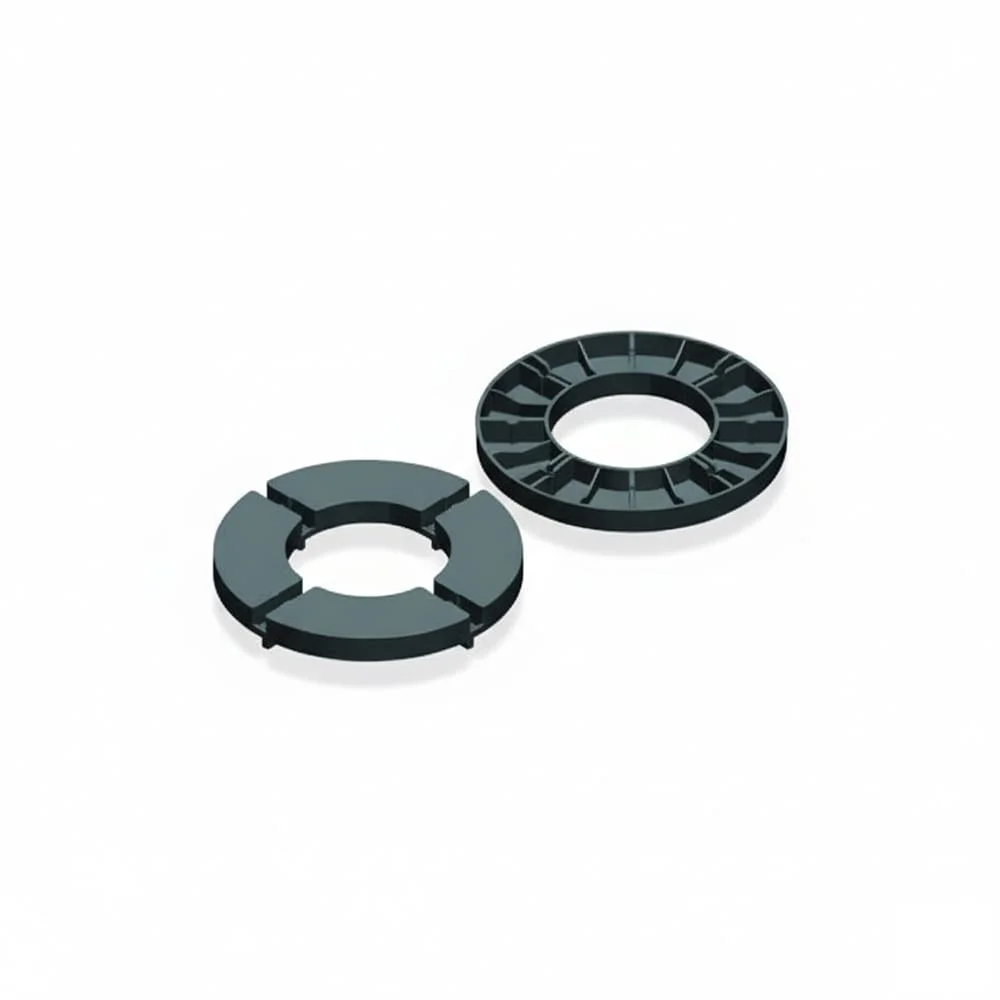

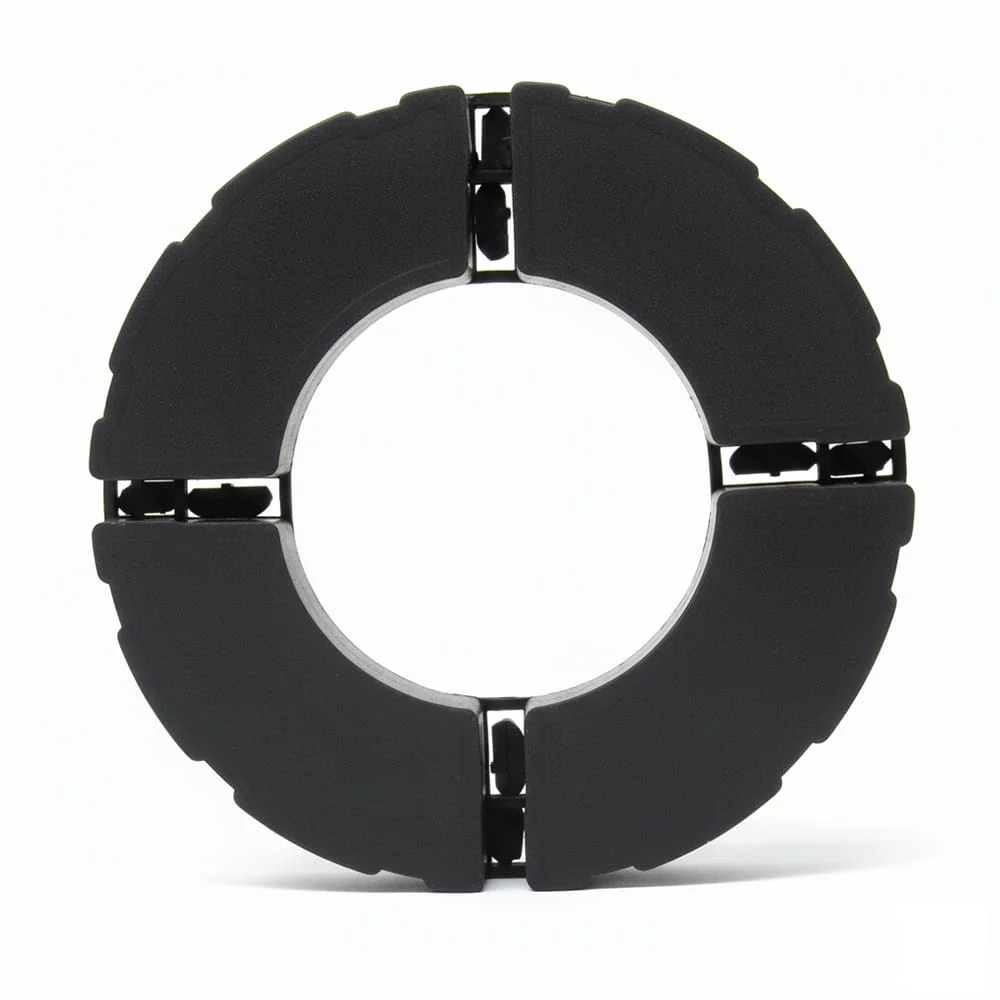

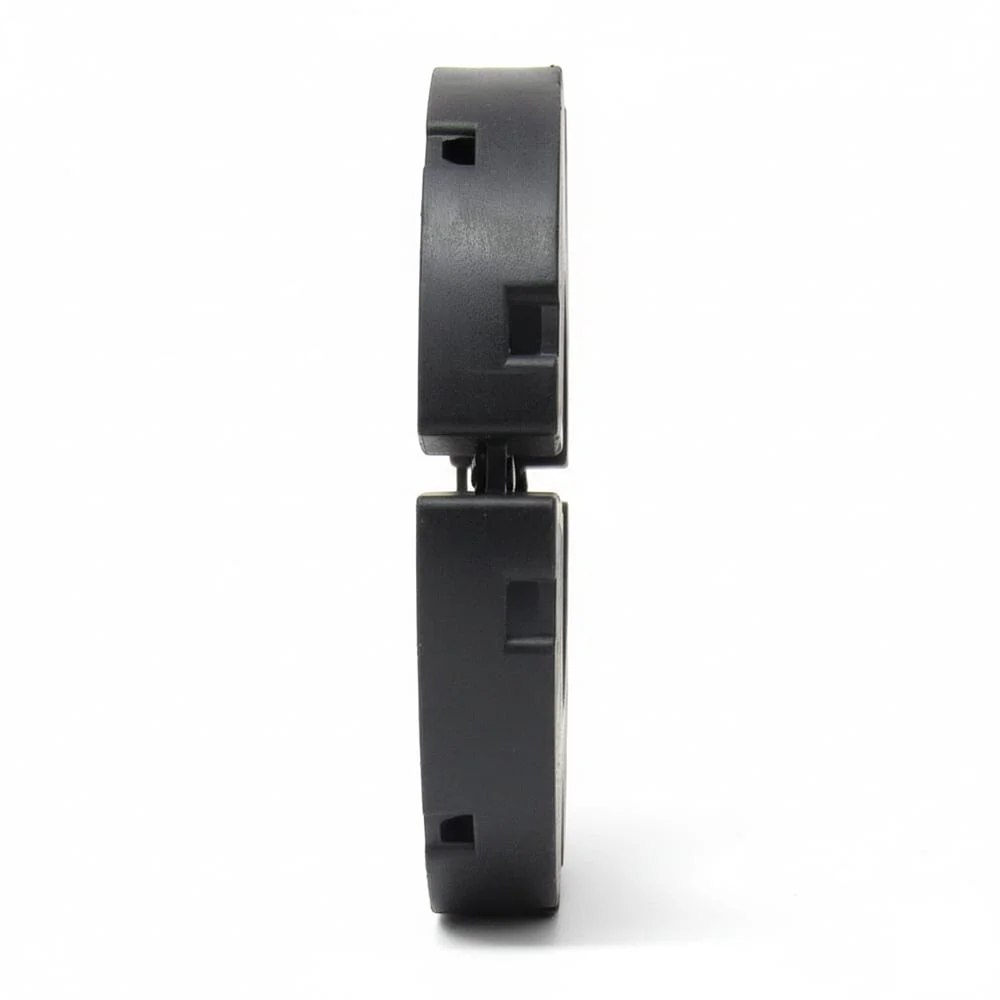

GSPF Roof Tile Spacers are polymer spacers placed under tiles or stone slabs on rooftops, terraces and patios. They lift the surface material to a consistent height and keep a gap below it.
That gap lets water run off and air circulate, which reduces the chance of water collecting on the waterproofing layer underneath. The polymer is made for long-term outdoor exposure.
Key Features and Benefits
Uniform elevation
Spacers hold tiles or slabs at a consistent height across the surface.
Drainage and airflow
The gap beneath the tiles supports water runoff and airflow, and lowers stress on the surface.
Waterproofing protection
Avoiding water accumulation helps protect the waterproofing system below.
Outdoor-ready polymer
The material is durable for long-term outdoor exposure and light to handle.
Applications and Use Cases
Roof Tile Spacers are used for:
- Rooftop tile and slab installations that need controlled spacing
- Patios, terraces and balconies with tiled or stone finishes
- Areas that need better drainage and airflow beneath the surface
- Installations where the waterproofing membrane must be protected
- Commercial and residential rooftop landscaping or hardscaping
Technical Specifications
| Product Code | Height (mm) | Dia (mm) | Packing (pcs) |
|---|---|---|---|
| GRS13 | 13 | 150 | 150 |
| GSR19 | 19 | 150 | 100 |
Request a quotation
Buy Roof Tile Spacers from Global Source Middle East
On a roof terrace, the finished tiles are only as durable as the drainage beneath them. Global Source Middle East supplies GSPF Roof Tile Spacers to waterproofing and paving contractors in the UAE. Send the height and the area to be covered, and we will quote the product code and pack quantity.
Frequently Asked Questions
What do Roof Tile Spacers do?
They raise tiles or slabs to a uniform height, which promotes drainage and airflow and helps protect the waterproofing layer from standing water.
Which heights are available?
13 mm and 19 mm.
What diameter are they?
Both heights have a diameter of 150 mm.
