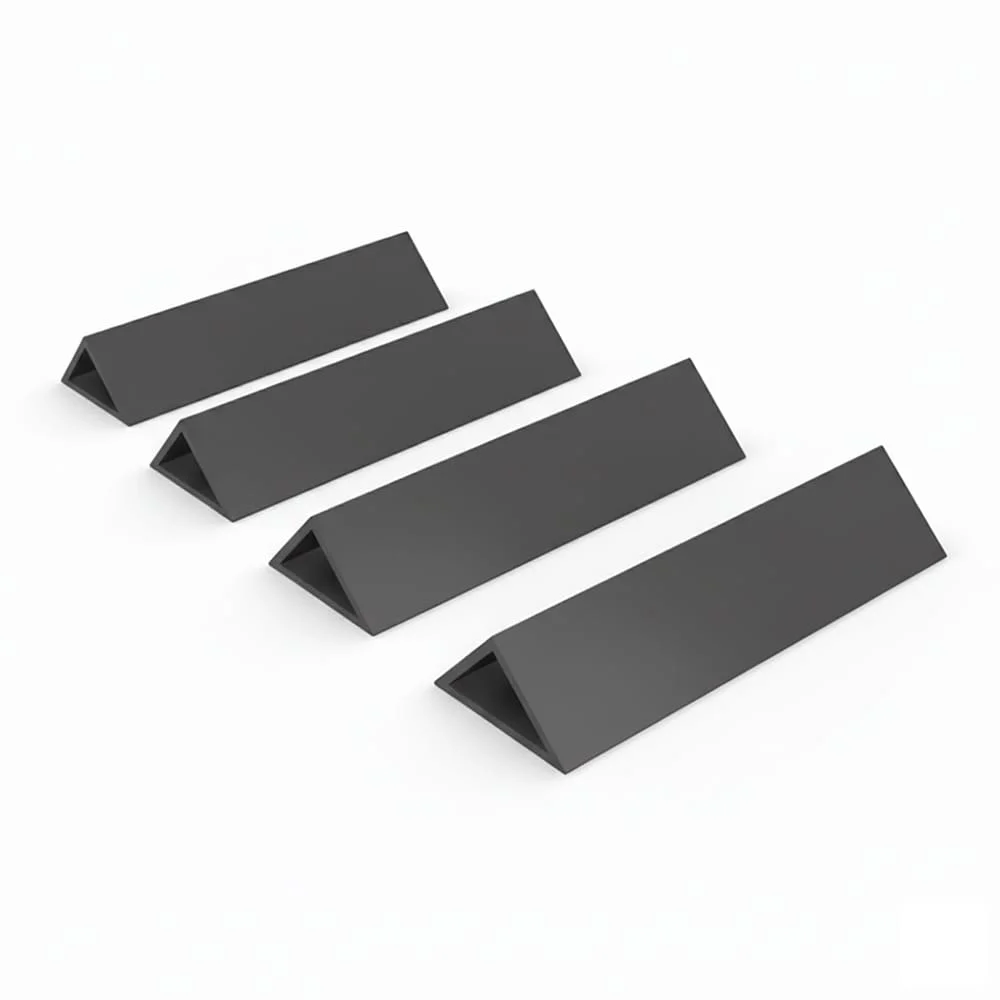

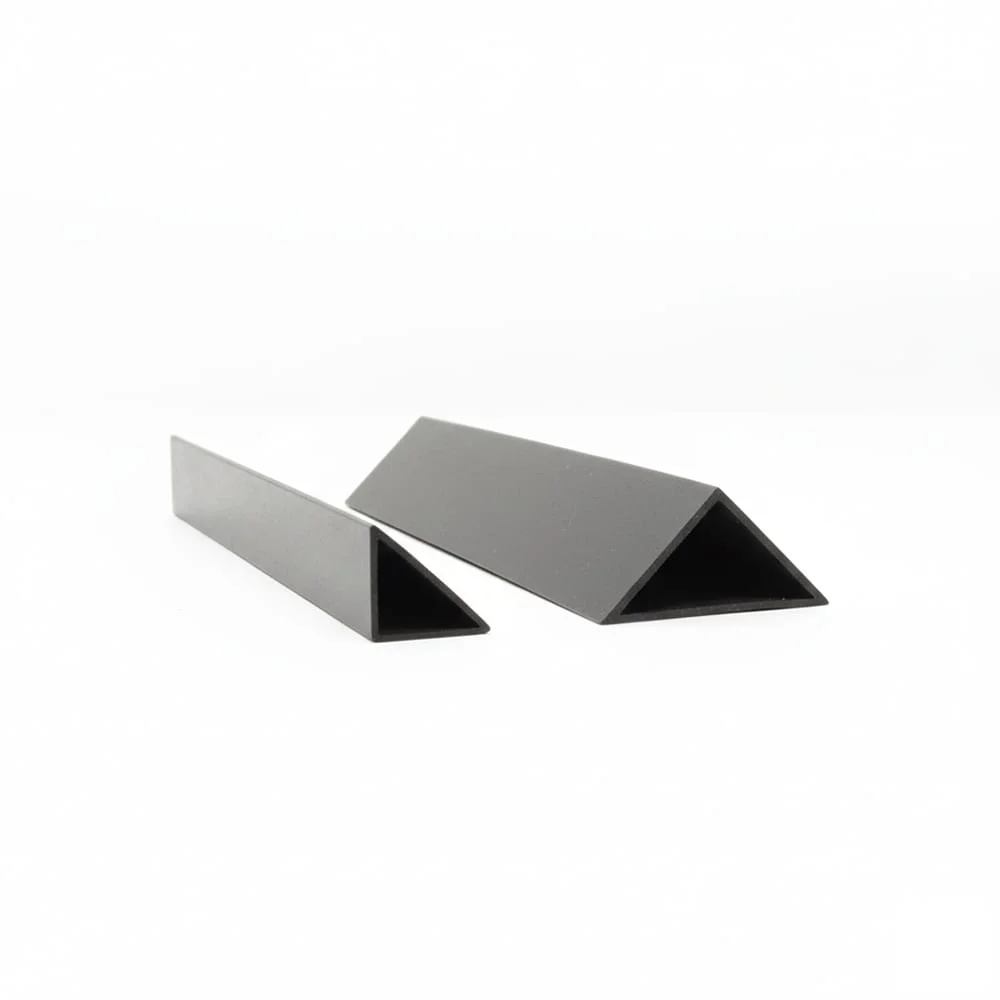

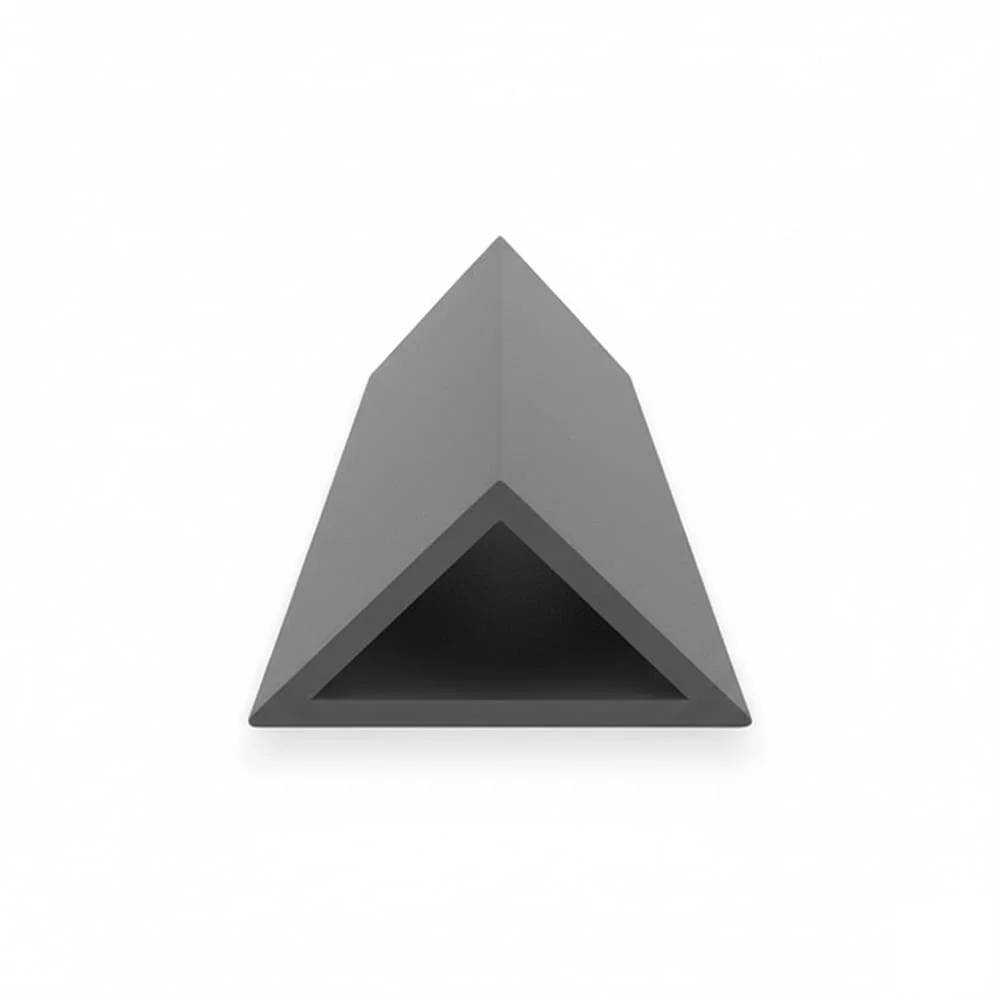

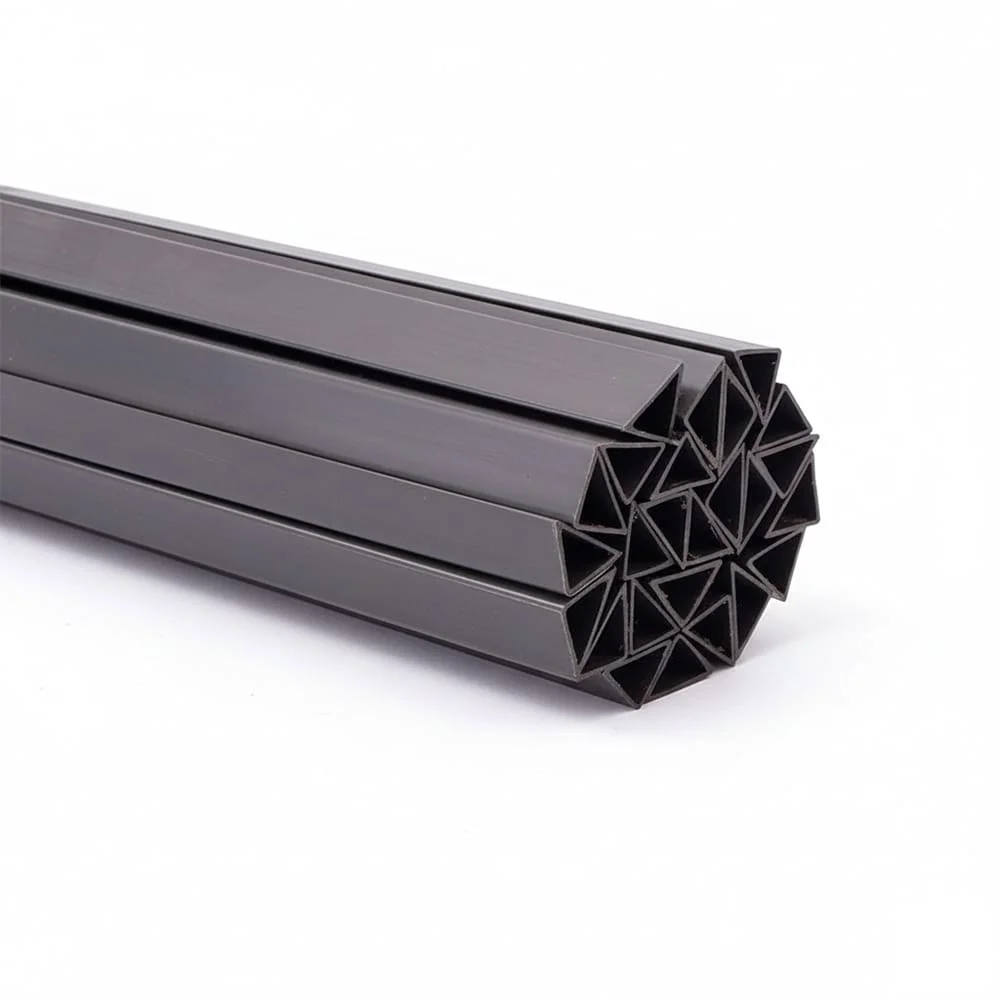

GSPF Plastic Corner Chamfers for Concrete Edges, 10 to 25 mm
Moulded polymer chamfer profiles that form clean, consistent chamfered edges and groove lines in precast and cast-in-situ concrete.
- Brand
- GSPF
- Type
- Individual product
- Forms chamfered edges in concrete elements
- Also forms groove lines for detailing
- Sizes 10, 15, 20 and 25 mm
- Supplied in 2 m lengths
- Resistant to moisture, wear and deformation
- For repeated use in production
Description
GSPF Plastic Corner Chamfers are moulded polymer profiles that sit in the corners of formwork and form a chamfered edge on the concrete. They avoid sharp arrises, which are prone to chipping, and they can also be used to form groove lines.
They are light, resistant to moisture and wear, and designed to be reused across casting cycles. They give uniform edge profiles on beams, columns, walls and other elements.
Key Features and Benefits
Consistent geometry
Uniform profiles produce uniform edges across a production run.
Reduced edge chipping
A chamfered edge is less likely to chip than a sharp corner, which improves the finish of the element.
Four chamfer sizes
Sizes are 10 x 10 x 10, 15 x 15 x 15, 20 x 20 x 20 and 25 x 25 x 25 mm, each in 2 m lengths.
Reusable in production
The profiles resist moisture, wear and deformation, and release cleanly when formwork is removed.
Applications and Use Cases
Plastic Corner Chamfers are used for:
- Precast beams, columns, panels and facade elements
- Cast-in-situ concrete that needs clean chamfered perimeter edges
- Architectural detailing, including groove lines and decorative accents
- Reducing edge damage during transport and installation
- Formwork systems used in repetitive production cycles
Technical Specifications
| Product Code | Size (mm) | Length (M) |
|---|---|---|
| GPC10 | 10 x 10 x 10 | 2 |
| GPC15 | 15 x 15 x 15 | 2 |
| GPC20 | 20 x 20 x 20 | 2 |
| GPC25 | 25 x 25 x 25 | 2 |
Request a quotation
Buy Plastic Corner Chamfers from Global Source Middle East
Edge quality is one of the first things a client sees on precast, and chipped arrises are expensive to repair. Global Source Middle East supplies GSPF Plastic Corner Chamfers to precast producers and formwork contractors in the UAE. Send the chamfer size and total length, and we will quote the order.
Frequently Asked Questions
What is a corner chamfer used for?
It forms a bevelled edge on a concrete element, which avoids a sharp corner and reduces edge chipping. It can also form groove lines.
Which sizes are available?
10, 15, 20 and 25 mm, each supplied in 2 m lengths.
How are they supplied?
Profiles are supplied in 2 m lengths, so order by the total length you need.
