GSPF Plastic Rebar Cones for Clean Grouting Recesses
Precision-moulded cones that form clean, uniform recesses in concrete for grouting and can be extracted after the formwork is removed.
- Brand
- GSPF
- Type
- Individual product
- Forms clean, accurate recesses for post-grouting
- Extractable after formwork removal
- Fitted at the end of tubes or sleeves
- Smooth internal geometry for a clean finish
- Three sizes: 20, 22 and 26 mm
- Packed 1000 pieces per size
Description

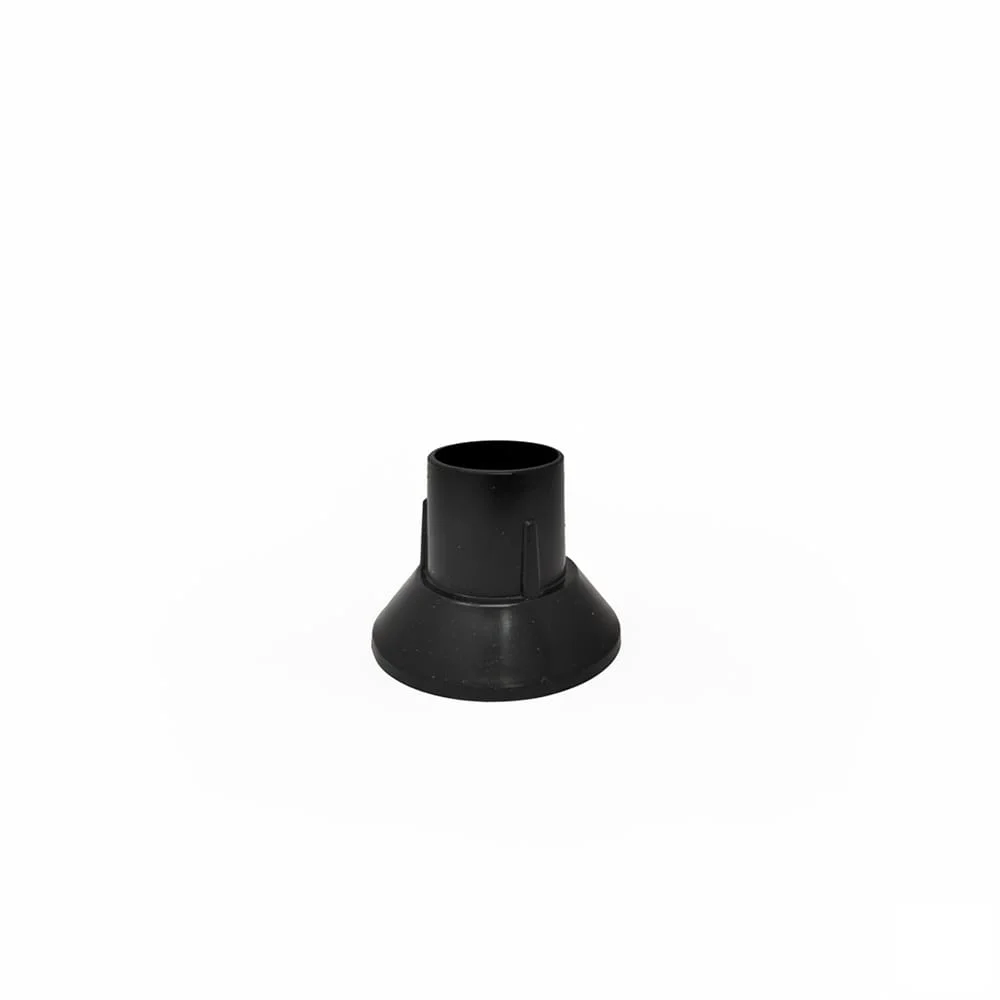

GSPF Plastic Cones, also known as Rebar Cones, are moulded polymer cones fitted at the end of tubes or sleeves. They form a cone-shaped recess in the concrete, which gives a defined, clean cavity for post-tensioning or grouting work.
After the formwork is removed, the cone can be extracted, leaving a uniform recess. Their smooth interior is intended to give a better concrete finish around the recess.
Key Features and Benefits
Clean recess formation
The moulded geometry forms accurate, uniform recesses for grouting.
Easy extraction
The cones can be removed after the formwork comes off, which saves effort and time.
Reusable polymer
The polymer is intended for repeated performance on site.
Three sizes
Cones come in 20 mm, 22 mm and 26 mm sizes, each packed 1000 pieces.
Applications and Use Cases
Plastic Rebar Cones are used for:
- Precast and cast-in-place elements that need grouting recesses
- Forming cavities for tie rods, sleeves or post-tensioning ducts
- Projects that need smooth, uniform cone-shaped voids for finishing or sealing
- Concrete work that needs clean extraction with minimal surface damage
- Infrastructure and industrial structures
Technical Specifications
| Product Code | Rebar Size (mm) | Packing (pcs) |
|---|---|---|
| GSPC20 | 20 | 1000 |
| GSPC22 | 22 | 1000 |
| GSPC26 | 26 | 1000 |
Request a quotation
Buy Plastic Rebar Cones from Global Source Middle East
A recess that is formed cleanly needs less making good, and a cone that comes out easily keeps the formwork cycle moving. Global Source Middle East supplies GSPF Plastic Rebar Cones to precast producers and contractors in the UAE. Send the sleeve or bar size and the quantity, and we will quote the matching code.
Frequently Asked Questions
What is a rebar cone used for?
It forms a cone-shaped recess at the end of a tube or sleeve in the formwork, for grouting or post-tensioning work. It is extracted once the formwork is removed.
Which sizes are available?
20 mm, 22 mm and 26 mm.
Are they single-use?
The cones are made from a durable polymer designed for repeated use on site.
