Weldy energy HT1600 Overlap Welding Kit with Heat Gun, 1600 W
A five-piece overlap welding kit built around the 1600 W energy HT1600 heat gun, for welding PVC and TPO membranes and technical textiles.
- Brand
- Weldy
- Category
- Plastic Welding Equipment
- Model
- energy HT1600 Overlap welding kit
- Type
- Individual product
- Five-piece kit for overlap welding
- Two wide slot nozzles: 40 mm and 20 mm
- 40 mm silicone pressure roller
- Durable storage case
- Stepless temperature control, 40–700 °C

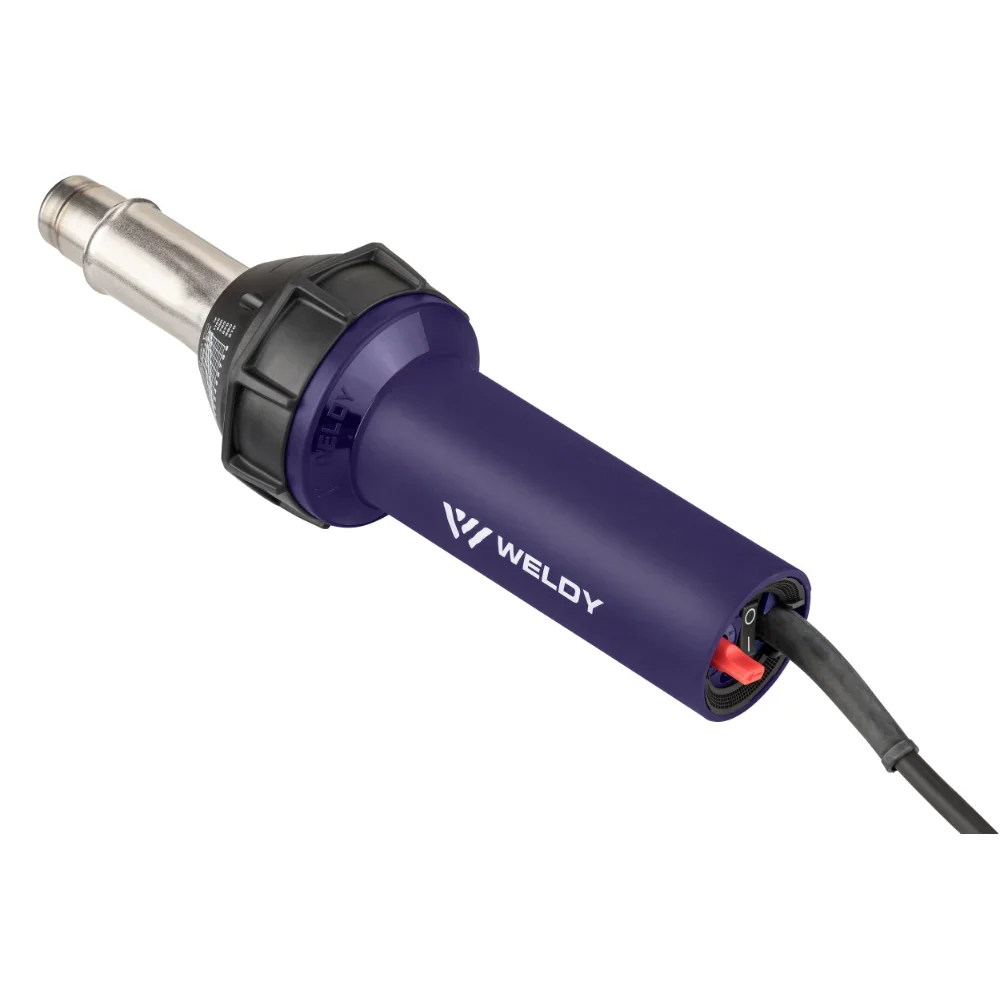

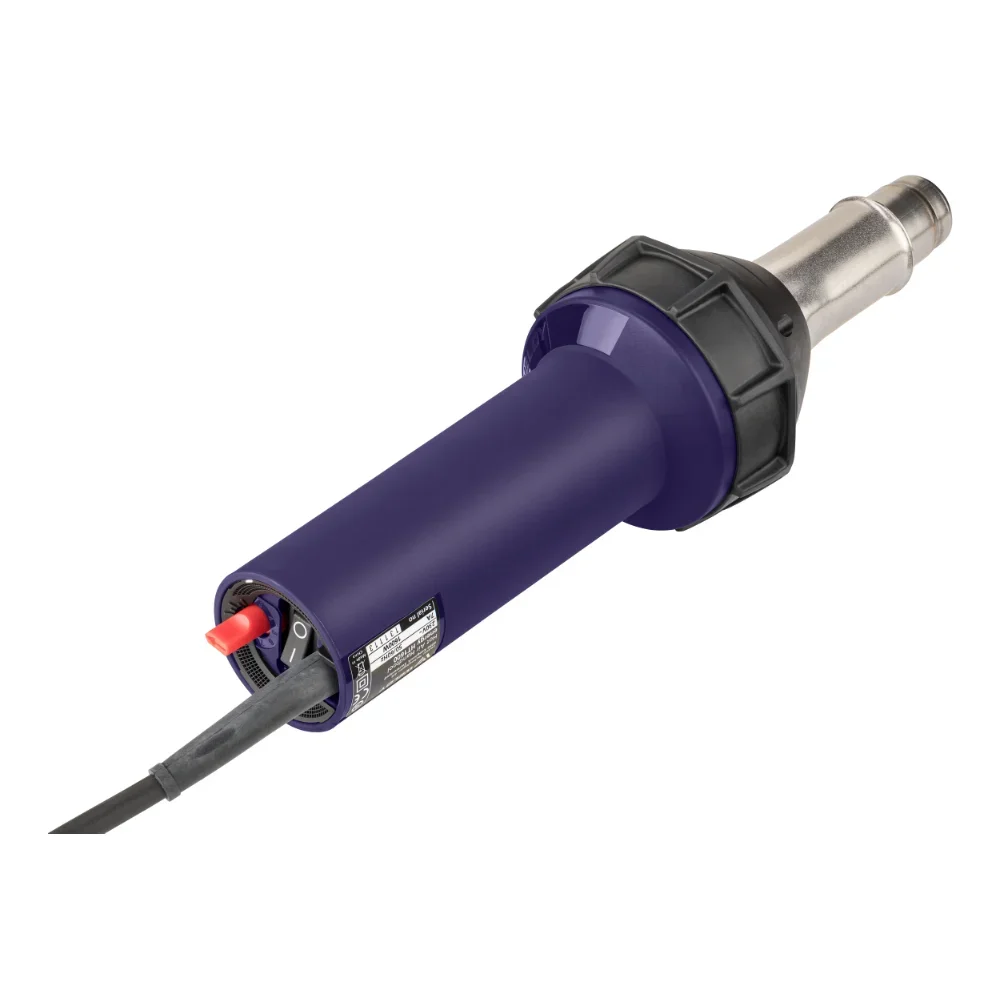

- 1600 W heat gun with ceramic heating element
- CE approval; CN plug, 2 poles, 10 A
Description
The Weldy energy HT1600 Overlap Welding Kit combines the energy HT1600 heat gun with the accessories needed for overlap welding thermoplastic membranes and technical textiles made of PVC (vinyl) and TPO. It suits both professionals and beginners.

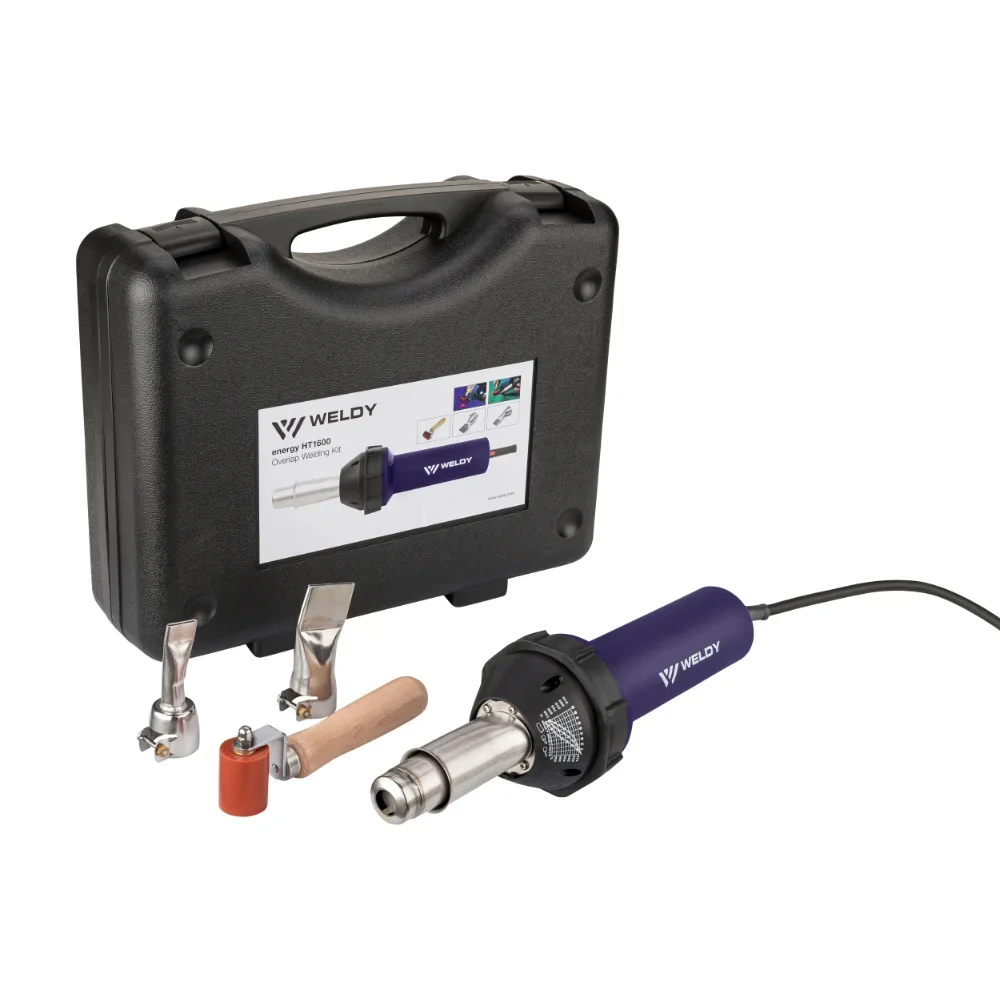

The kit holds the heat gun, a 40 mm and a 20 mm wide slot nozzle, a 40 mm silicone pressure roller and a durable storage case.
The heat gun runs at 1600 W on 230 V, with a stepless temperature range of 40 to 700 °C and a constant airflow of 240 l/min. This article, 120.888, is supplied with a CN plug.
Key Features and Benefits
Everything for overlap welding in one kit
The two wide slot nozzles (40 x 2 mm and 20 x 2 mm) and the 40 mm silicone pressure roller cover the main steps of an overlap seam without sourcing accessories separately.
Stepless heat control
The temperature is set steplessly between 40 and 700 °C, so the heat can be matched to the membrane or textile being welded.
Ceramic heating element
The heat gun uses a ceramic heating element with a constant airflow of 240 l/min at 2600 Pa static pressure.
Compact and portable
The gun weighs 0.99 kg without its power cord and is 346 mm long. The storage case keeps the gun and accessories together for transport.
Site-ready design
The tool is designed for outdoor use, with protection class II insulation and a 3 m power cable.
Applications and Use Cases
The energy HT1600 Overlap Welding Kit is used for:

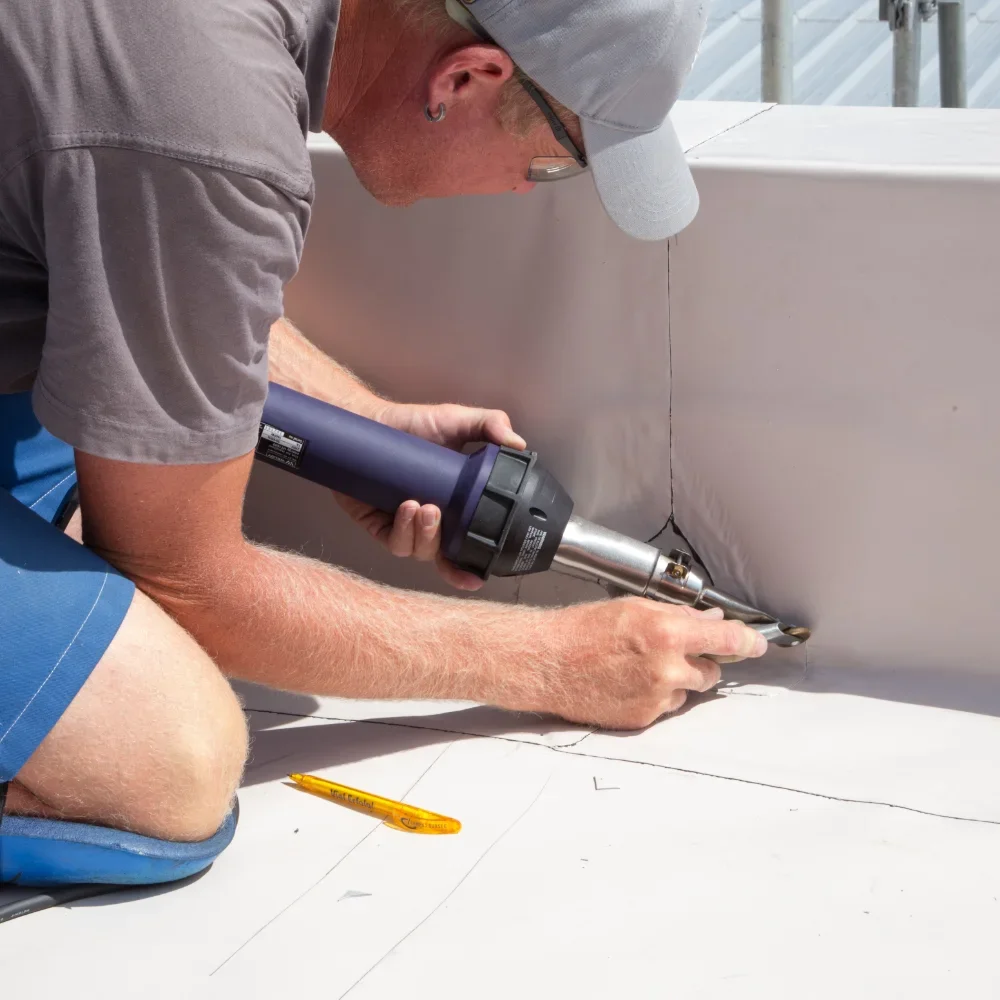

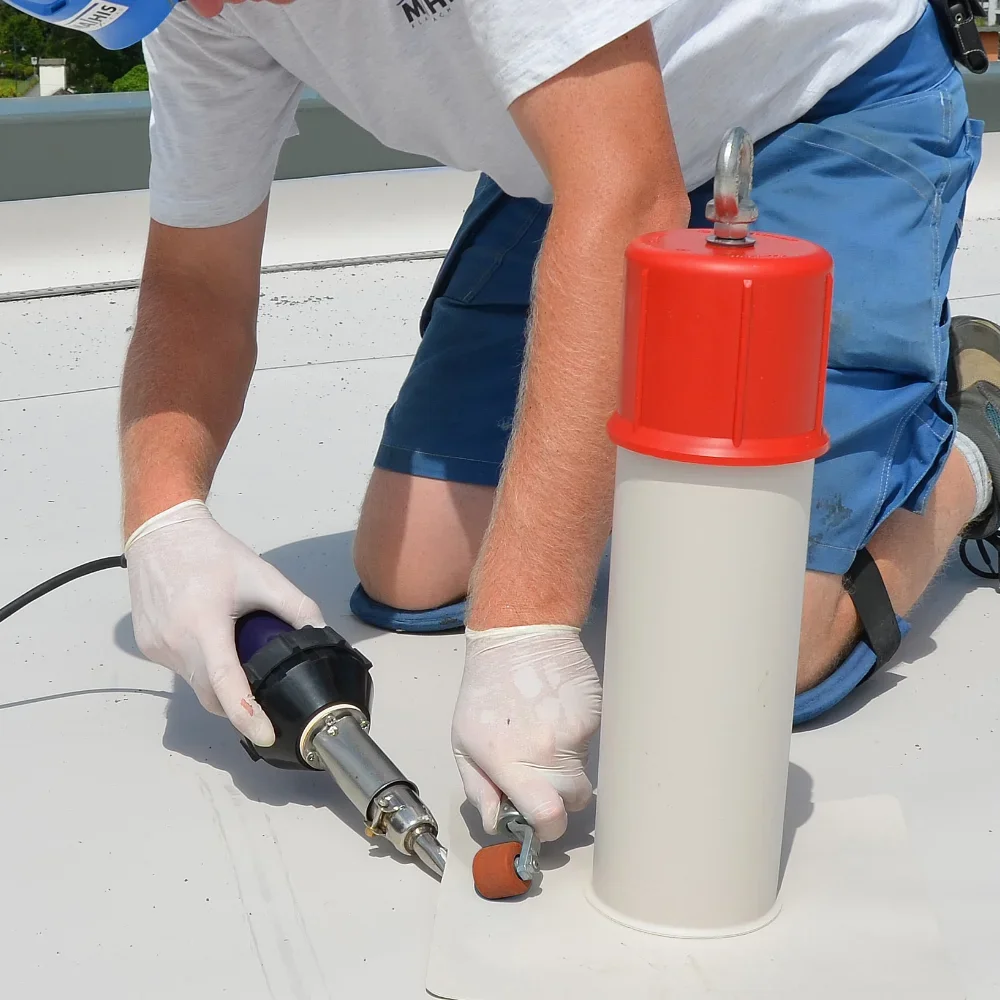

- Flat roof membrane welding
- Pitched roof membrane welding

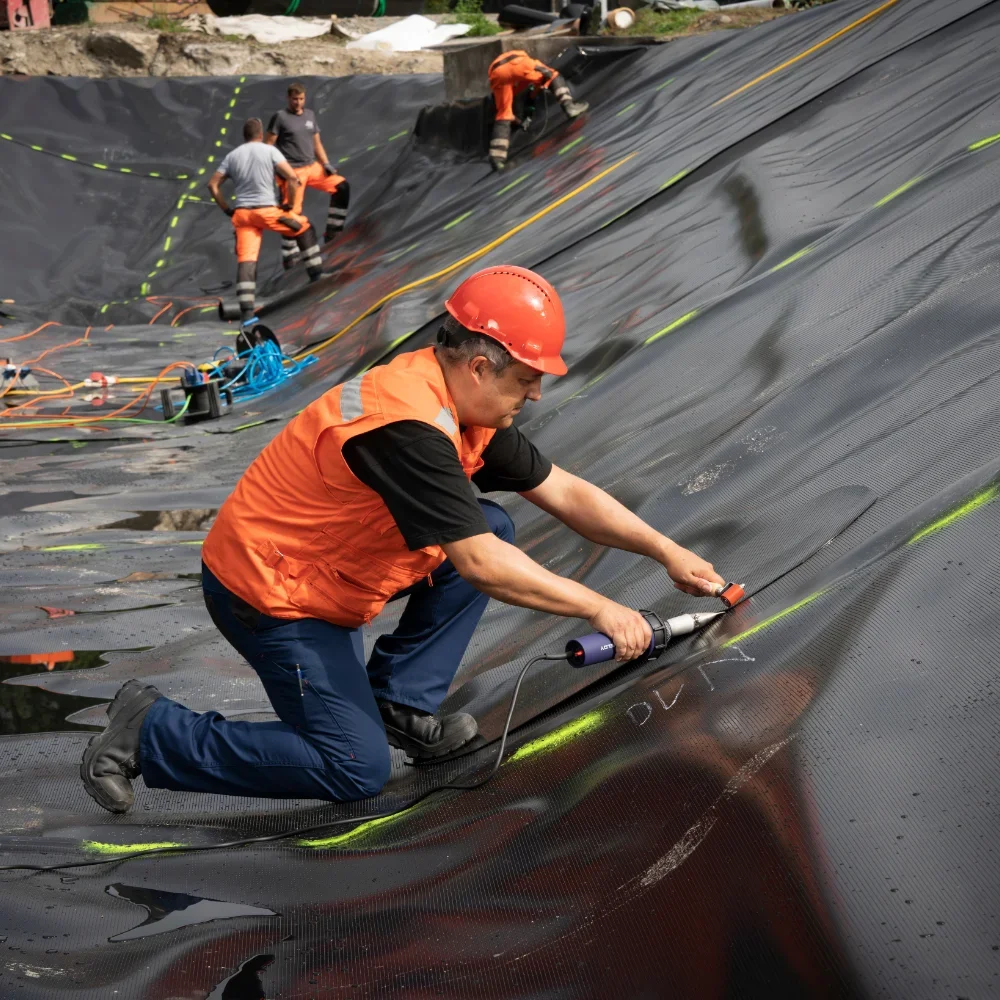

- Pool and pond waterproofing

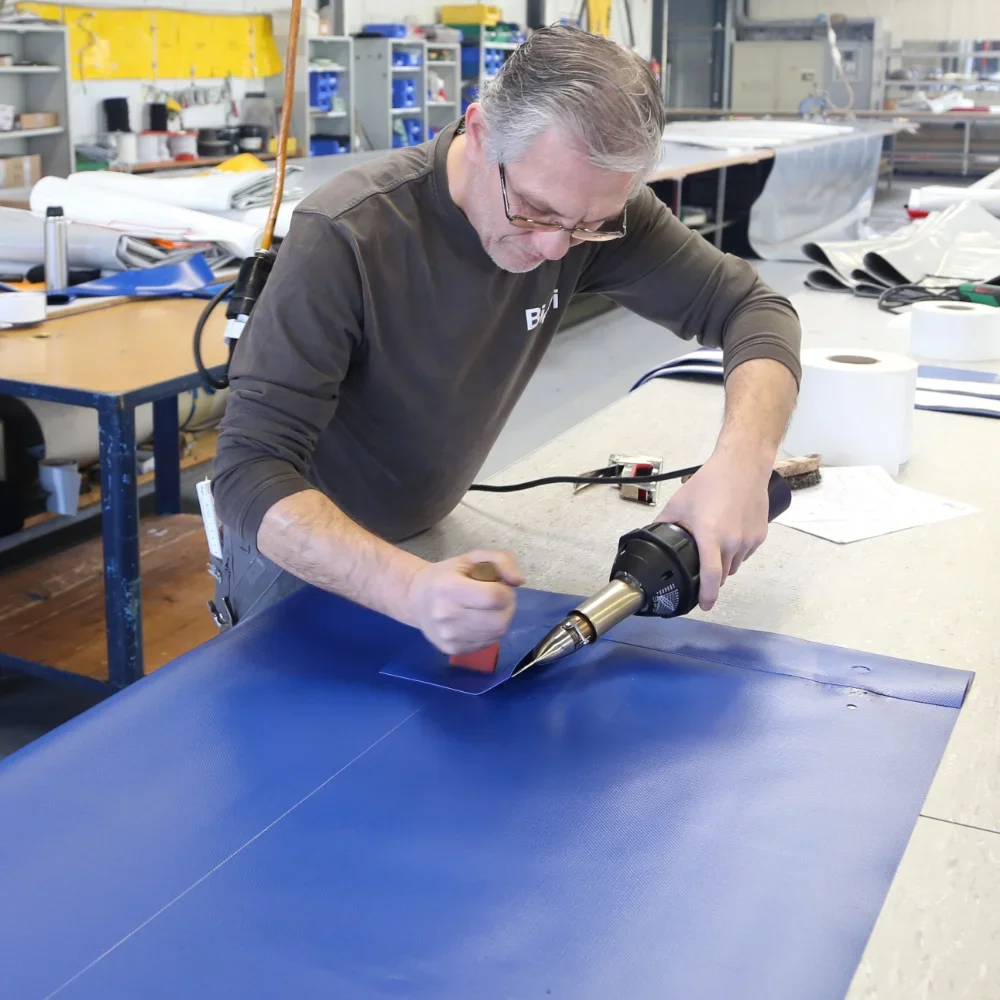

- Advertising banner welding
- Tent and truck tarpaulin welding
- Inflatable plastic fabric welding
- Protective cover welding
Technical Specifications
Heat gun
Weldy energy HT1600, article 120.888
- Article number
- 120.888
- Voltage
- 230 V
- Frequency
- 50/60 Hz
- Power
- 1600 W
- Temperature
- 40–700 °C
- Temperature setting
- Stepless
- Airflow (20 °C)
- 240 l/min
- Stepless air volume adjustment
- No
- Static pressure
- 2600 Pa
- Eco-Mode
- No
- Display
- No
- e-Drive
- No
- Designed for outdoor use
- Yes
- Nozzle connection
- ø 31.5 mm / 1.25 in
- Length
- 346 mm
- Device diameter
- 101 mm
- Handle diameter
- 59 mm
- Weight without power cord
- 0.99 kg
- Power cable length
- 3 m
- Plug
- CN, 2 poles, 10 A
- Noise emission level
- 67 dB(A)
- Approvals
- CE
- Protection class
- II
- Country of origin
- P.R. China
Kit contents
The kit is supplied with the following items
- Heat gun
- energy HT1600, article 120.888
- Wide slot nozzle (ø 31.5) 40 x 2 mm
- Article 124.777
- Wide slot nozzle (ø 31.5) 20 x 2 mm
- Article 124.772
- Pressure roller 40 mm, silicone
- Article 130.611
- Storage case
- Durable storage case
Optional accessories are available separately. They include reflector nozzles, speed welding nozzles, tubular nozzles and further wide slot nozzles, and they are not part of the kit.
Request a quotation
Buy Energy HT1600 Overlap Welding Kit from Global Source Middle East
The overlap welding kit suits teams that weld PVC and TPO membranes or tarpaulins and want the gun, nozzles and roller supplied together. Global Source Middle East supplies the Weldy energy HT1600 Overlap Welding Kit to roofing, waterproofing and tarpaulin fabrication teams in the UAE. Send the membrane or textile material and the quantity for a quotation.
Frequently Asked Questions
What is included in the energy HT1600 Overlap Welding Kit?
The energy HT1600 heat gun, a 40 x 2 mm wide slot nozzle (124.777), a 20 x 2 mm wide slot nozzle (124.772), a 40 mm silicone pressure roller (130.611) and a durable storage case.
Which materials is the kit for?
Overlap welding of thermoplastic membranes and technical textiles made of PVC (vinyl) and TPO.
What plug does article 120.888 have?
A CN plug, 2 poles, 10 A. Confirm that the plug suits the site supply before ordering.
Can other nozzles be used with the kit?
Yes. The nozzle connection is ø 31.5 mm, and reflector, speed welding, tubular and wide slot nozzles are available as accessories. They are not included in the kit.
