Väli VPWS 500 Automatic Butt Fusion Welding Machine, 200–500 mm
Three-phase automatic butt fusion machine for pipe from 200 to 500 mm, with a 6.5 kW heating plate.
- Brand
- Väli
- Category
- Pipe Welding Equipment
- Model
- VPWS 500
- Type
- Individual product
- Pipe range 200 to 500 mm
- Nine pipe sizes
- 380 V, three-phase, 50/60 Hz
- Hydraulic pressure range 0–8 MPa
- Heating plate rated 6.5 kW
- Total power 9.5 kW
Description
The Väli VPWS 500 is an automatic butt fusion machine for thermoplastic pipe from 200 mm to 500 mm. It extends the VPWS 450 range by one size step and adds a larger heating plate, 6.5 kW against 5.38 kW.

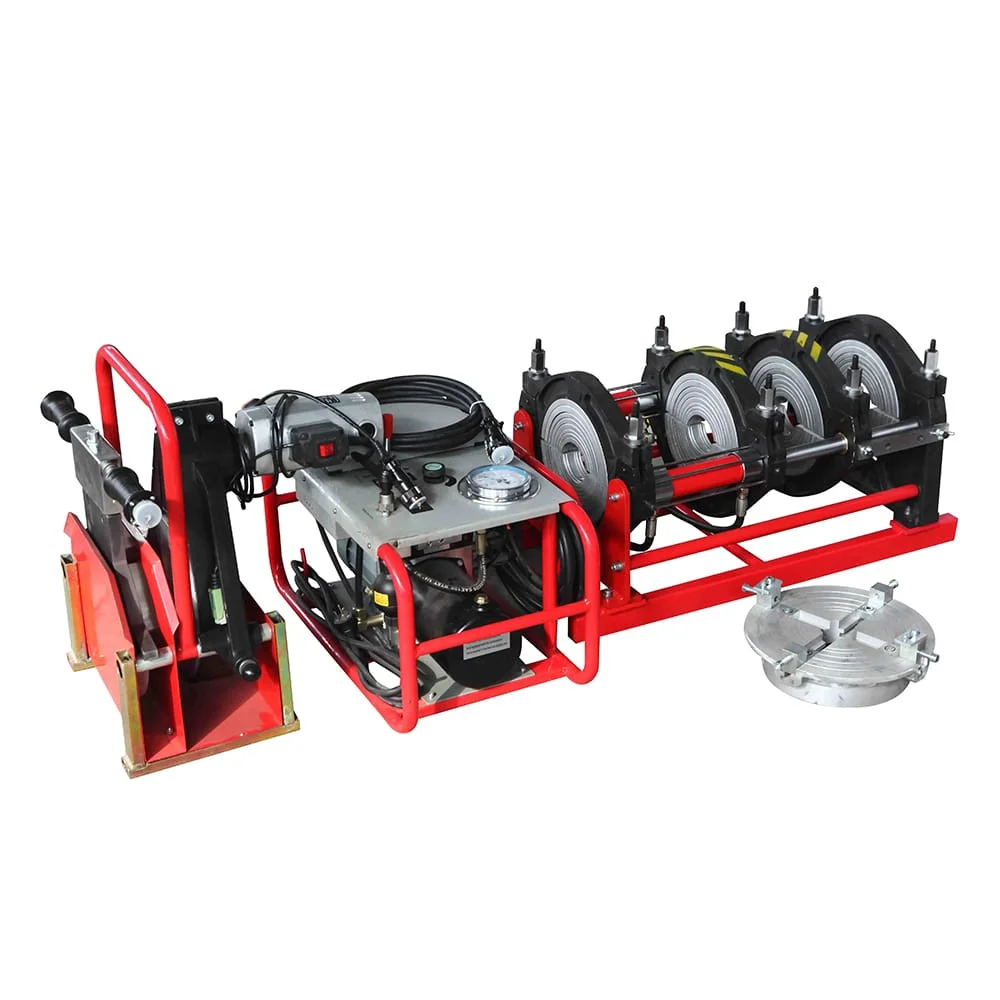

It uses a 380 V three-phase supply, an electrohydraulic control unit, a removable electric facing tool and an electronic countdown timer.
Key Features and Benefits
Nine pipe sizes
Sizes run from 200 mm to 500 mm, for HDPE, PE, PP and PVDF pipe.
6.5 kW heating plate

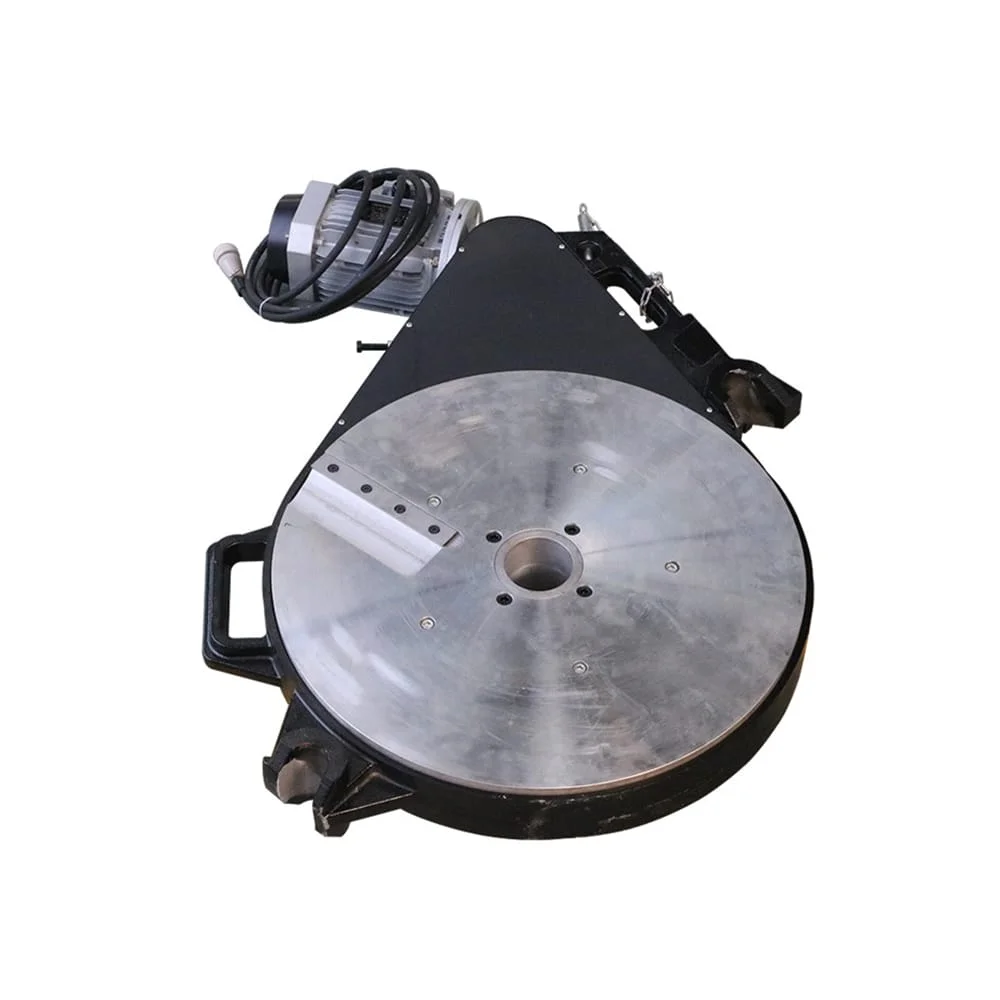

The PTFE-coated plate has electronic temperature control, a 270°C maximum and a deviation of less than ±7°C.
0–8 MPa hydraulic range
The electrohydraulic unit allows pressure to be set across 0 to 8 MPa.
Facing tool and timer

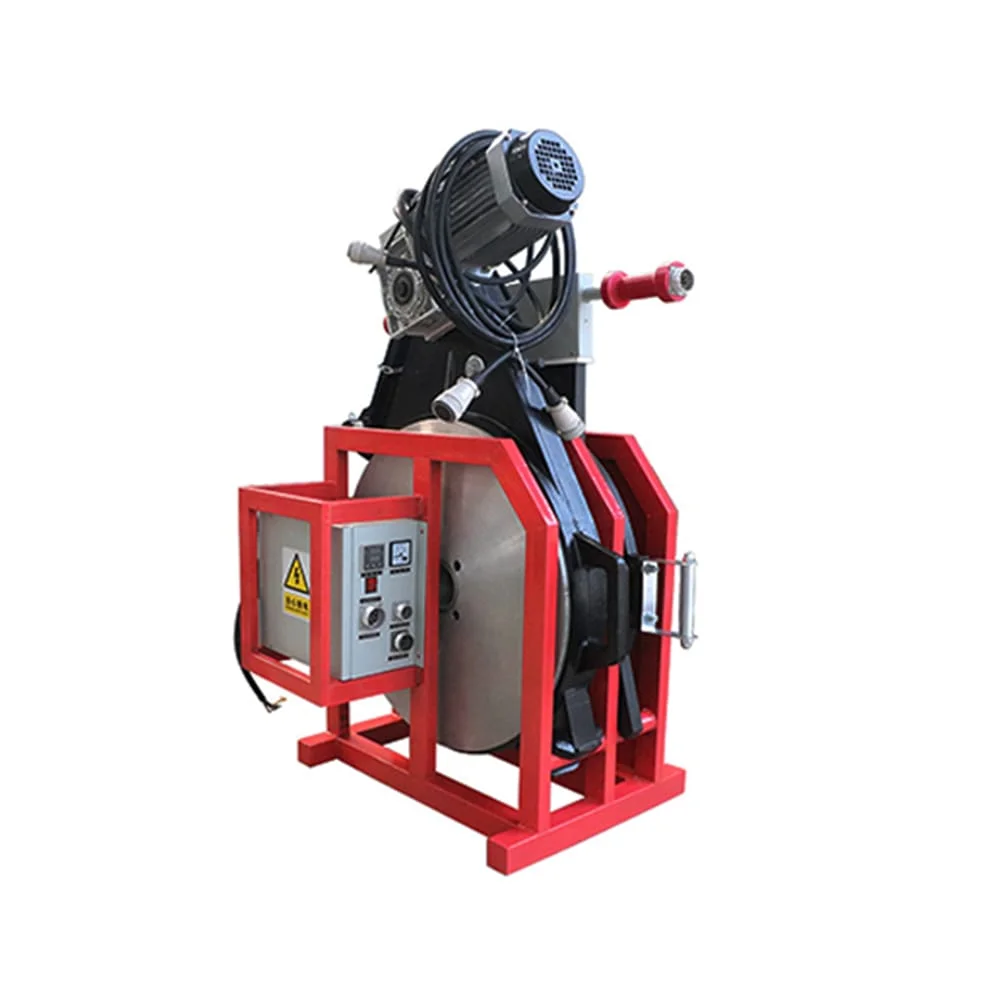

The removable electric facing tool prepares the pipe ends, and the electronic countdown timer manages heating and cooling times.
Applications and Use Cases
The Väli VPWS 500 is used for:
- Water trunk lines and distribution networks
- Large-diameter sewage and drainage lines
- Industrial pipelines carrying chemicals or other fluids
Technical Specifications
Väli VPWS 500 technical data
- Model
- VPWS 500
- Pipe Welding Ranges
- 200, 225, 250, 280, 315, 355, 400, 450, 500
- Working Voltage
- 380V, 3P, 50/60 Hz
- Heating Plate Max. Temp
- 270°C
- Deviation in Heating Plate Surface Temperature
- <±7°C
- Pressure Adjustment Ranges
- 0-8 Mpa
- Heating Plate Power
- 6.5KW
- Planning Tool Power
- 1.5KW
- Hydraulic Unit Power
- 1.5KW
- Total Power
- 9.5KW
Pipe welding ranges are nominal pipe diameters in mm, and Planning Tool Power is the power of the facing tool. The pressure range is the hydraulic unit setting and 270 °C is the heating plate maximum; fusion pressure and welding temperature follow the welding procedure for the pipe material, diameter and wall thickness.
Accessories available for this model: electric hoist, LDU data logger, flanges holder and trolley.
Request a quotation
Buy VPWS 500 from Global Source Middle East
The VPWS 500 shares its supply requirements with the VPWS 450 but adds a 500 mm size and a larger heating plate. Order the Väli VPWS 500 through Global Source Middle East. Send the pipe sizes and materials, the site power supply and any accessories, and we will quote the machine and the accessories you need.
Frequently Asked Questions
What is the total power of the VPWS 500?
9.5 kW: a 6.5 kW heating plate, a 1.5 kW facing tool and a 1.5 kW hydraulic unit.
Which pipe sizes can it weld?
200, 225, 250, 280, 315, 355, 400, 450 and 500 mm.
Which standards are Väli machines built to?
Väli engineers its machines to the requirements of DVS 2207 and ISO 21307.
