Väli VPWS 355 Automatic Butt Fusion Welding Machine, 90–355 mm
Automatic butt fusion machine for mid-to-large diameter pipe from 90 to 355 mm, with an electrohydraulic unit and a 220 V supply.
- Brand
- Väli
- Category
- Pipe Welding Equipment
- Model
- VPWS 355
- Type
- Individual product
- Pipe range 90 to 355 mm
- Twelve pipe sizes
- 220 V, 50/60 Hz supply
- Hydraulic pressure range 0–7 MPa
- Heating plate rated 4 kW
- Removable electric facing tool
Description

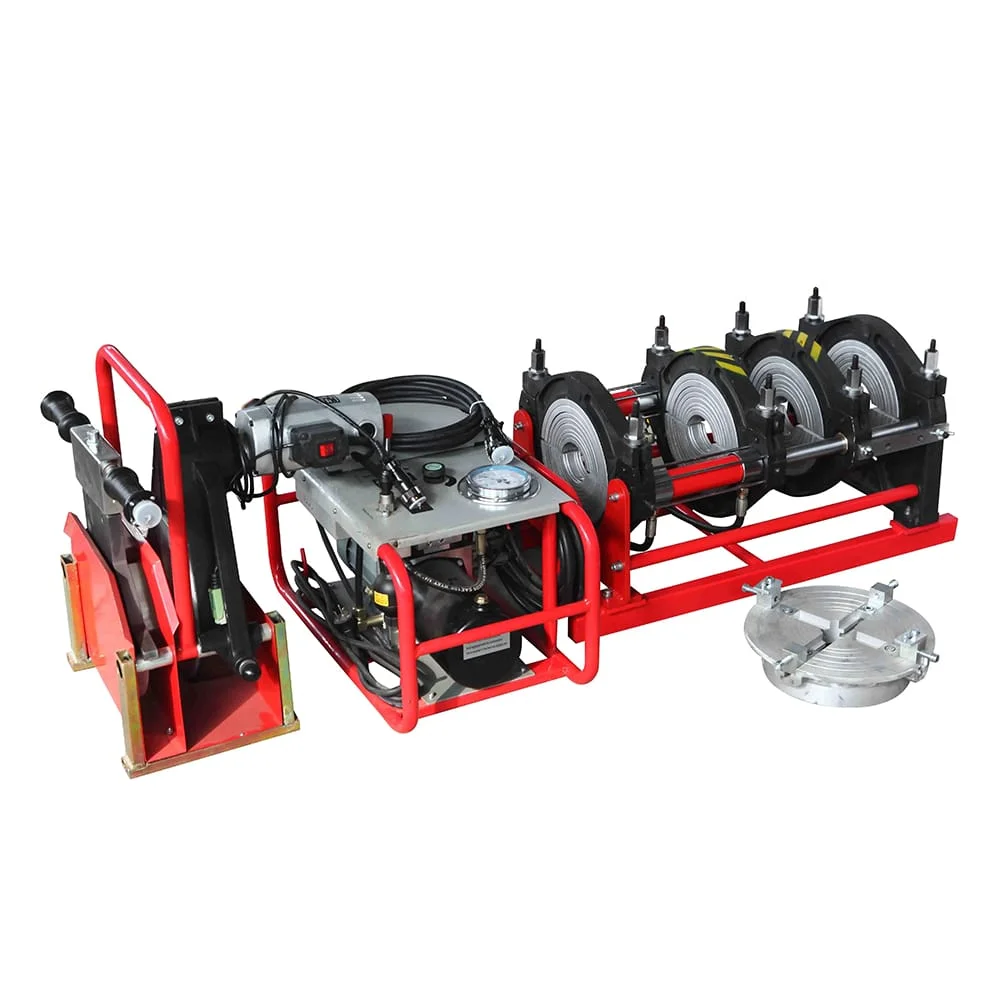

The Väli VPWS 355 is an automatic butt fusion machine for thermoplastic pipe from 90 mm to 355 mm. It combines an electrohydraulic unit, a PTFE-coated heating plate with electronic temperature control, a removable electric facing tool and an electronic countdown timer on one frame.
It runs on a 220 V, 50/60 Hz supply with a total power of 5.85 kW, which makes it the larger of the 220 V machines in the VPWS automatic range.
Key Features and Benefits
Mid-to-large size range
Twelve pipe sizes run from 90 mm to 355 mm, for HDPE, PE, PP and PVDF pipe.
Heating plate

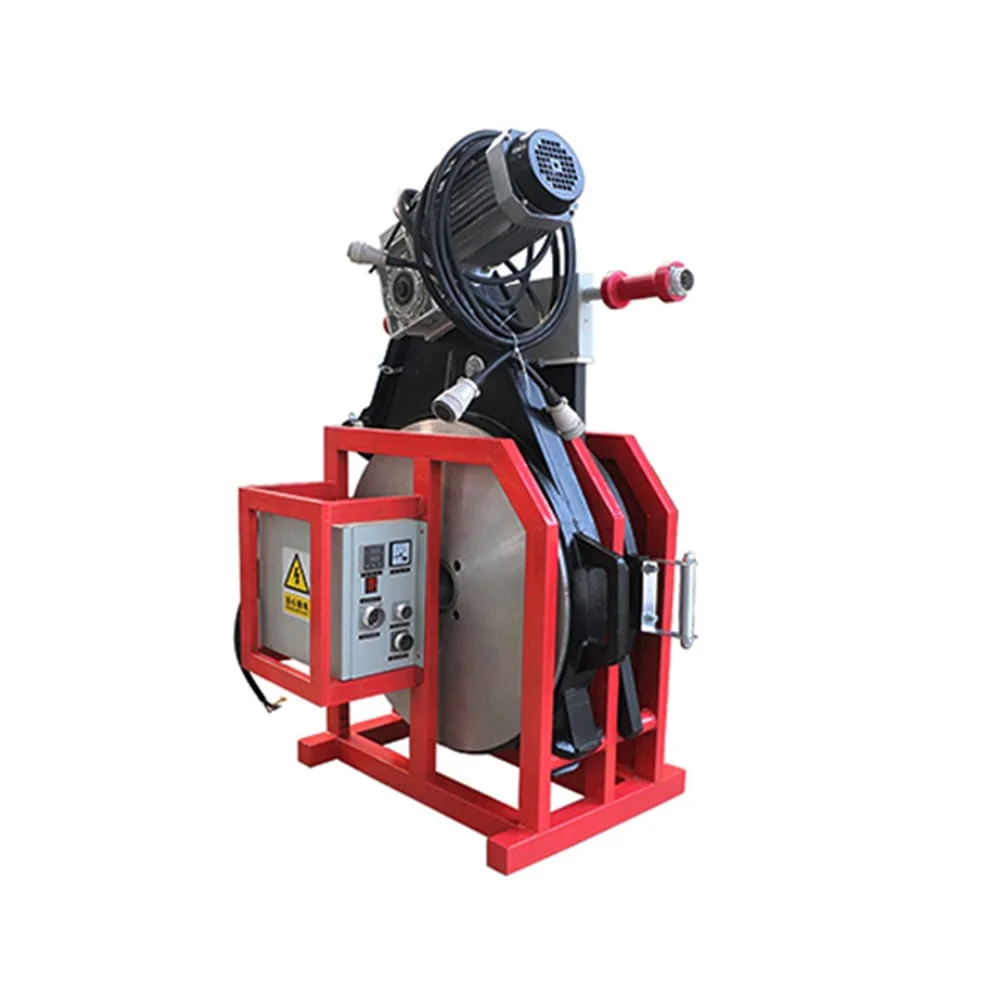

The PTFE-coated plate has electronic temperature control, a maximum of 270°C and a surface temperature deviation of less than ±5°C.
Electrohydraulic pressure control
The hydraulic unit adjusts pressure from 0 to 7 MPa, with low starting pressure for smaller or thin-walled pipe.
Facing tool and timer

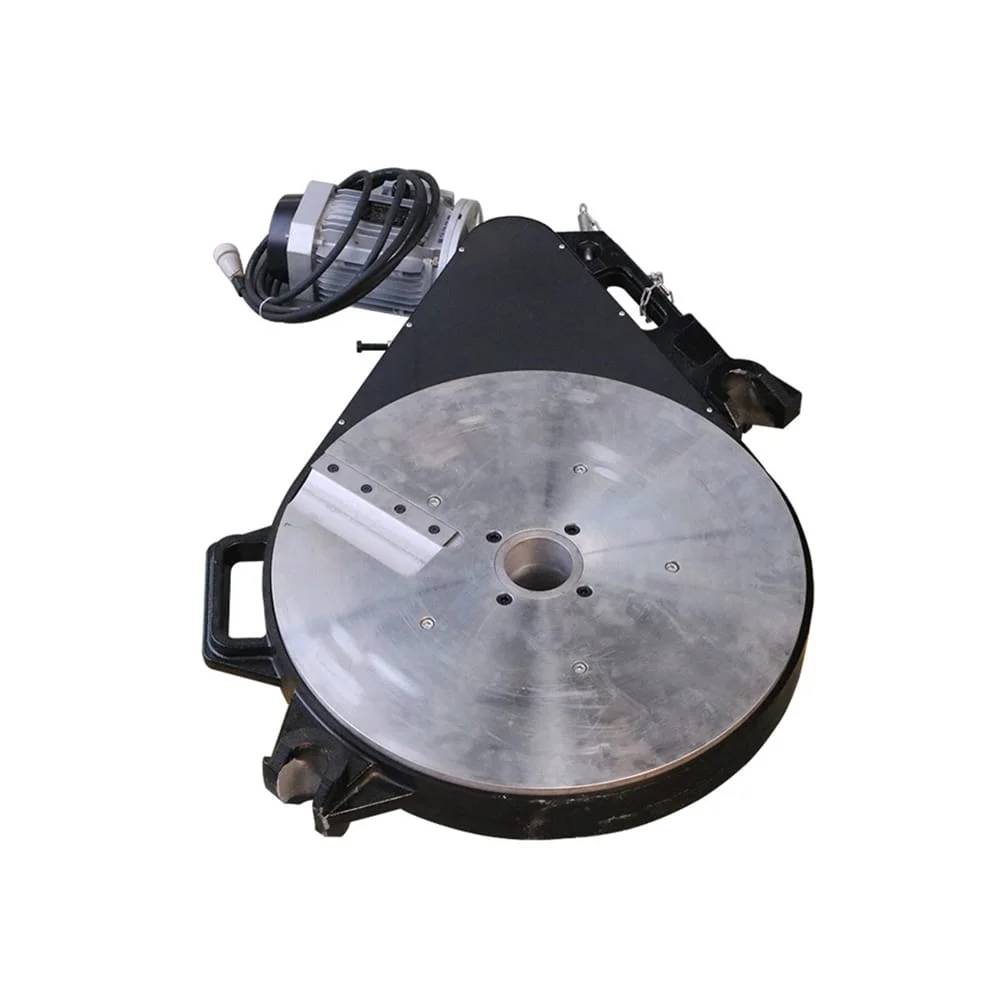

A removable electric facing tool prepares the pipe ends, and an electronic countdown timer manages the heating and cooling times.
Integrated frame

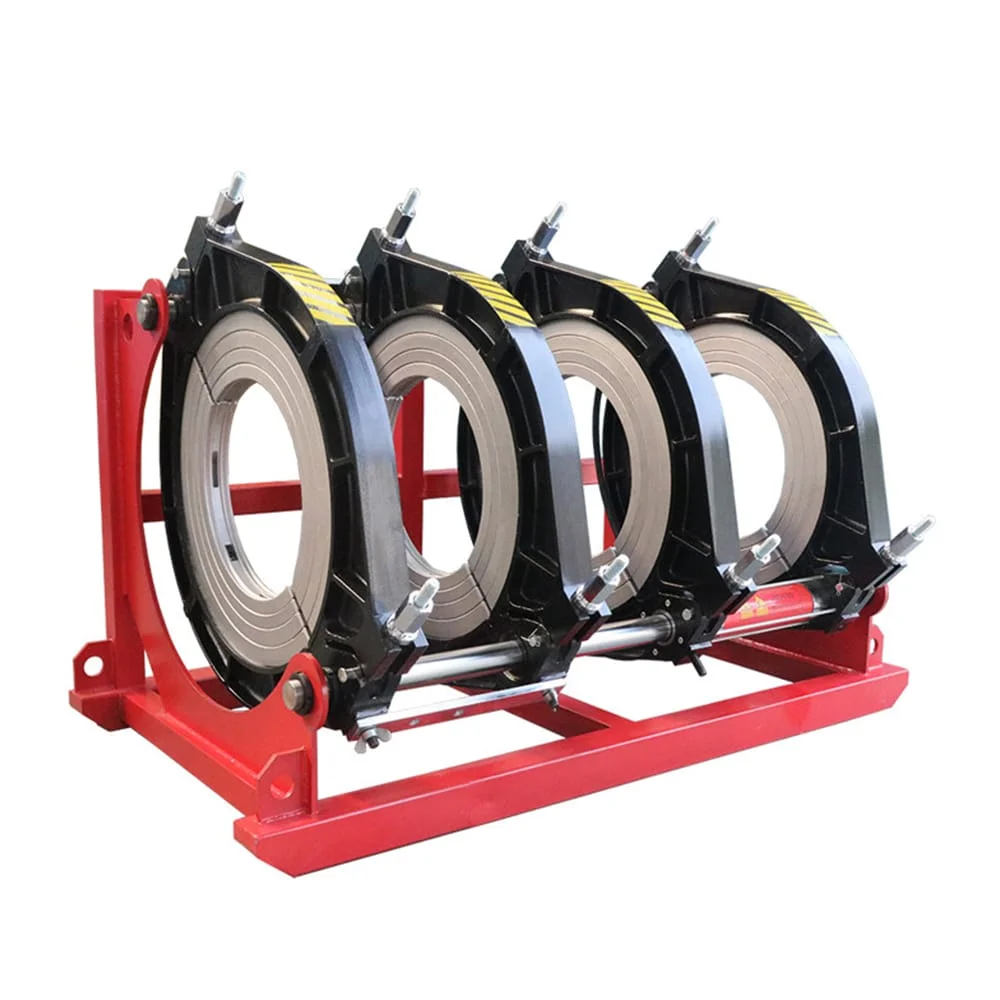

The basic frame carries the hydraulic unit, facing tool and heating plate.
Applications and Use Cases
The Väli VPWS 355 is used for:
- Water supply networks
- Sewage and drainage projects
- Industrial pressure pipelines
- Large irrigation networks
Technical Specifications
Väli VPWS 355 technical data
- Model
- VPWS 355
- Pipe Welding Ranges
- 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355
- Working Voltage
- 220V, 50/60 Hz
- Heating Plate Max. Temp
- 270°C
- Deviation in Heating Plate Surface Temperature
- <±5°C
- Pressure Adjustment Ranges
- 0-7 Mpa
- Heating Plate Power
- 4KW
- Planning Tool Power
- 1.1KW
- Hydraulic Unit Power
- 0.75KW
- Total Power
- 5.85KW
Pipe welding ranges are nominal pipe diameters in mm, and Planning Tool Power is the power of the facing tool. The pressure range is the hydraulic unit setting and 270 °C is the heating plate maximum; fusion pressure and welding temperature follow the welding procedure for the pipe material, diameter and wall thickness.
Accessories available for this model: electric hoist, LDU data logger, flanges holder and trolley.
Request a quotation
Buy VPWS 355 from Global Source Middle East
The VPWS 355 sits in the middle of the automatic range, so the key questions are the largest pipe size, the available supply and which accessories are needed. Global Source Middle East supplies the Väli VPWS 355 to contractors, utilities and pipeline fabricators in the UAE. Send the pipe sizes and materials, the site power supply and any accessories for a quotation.
Frequently Asked Questions
Which pipe sizes does the VPWS 355 weld?
It welds pipe from 90 mm to 355 mm: 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315 and 355.
What does the 0–7 MPa figure mean?
It is the hydraulic unit pressure range. Fusion pressure and welding force follow the welding procedure for the pipe material, wall thickness and diameter.
Which standards are Väli machines built to?
Väli engineers its machines to the requirements of DVS 2207 and ISO 21307.
