Väli VPWS 450 Automatic Butt Fusion Welding Machine, 200–450 mm
Three-phase automatic butt fusion machine for large pipe from 200 to 450 mm, with 0–8 MPa hydraulic pressure adjustment.
- Brand
- Väli
- Category
- Pipe Welding Equipment
- Model
- VPWS 450
- Type
- Individual product
- Pipe range 200 to 450 mm
- Eight pipe sizes
- 380 V, three-phase, 50/60 Hz
- Hydraulic pressure range 0–8 MPa
- Heating plate rated 5.38 kW
- Plate deviation under ±7°C
Description
The Väli VPWS 450 is an automatic butt fusion machine for thermoplastic pipe from 200 mm to 450 mm. It is the first model in the VPWS automatic range to use a 380 V three-phase supply, with a total power of 8.38 kW.

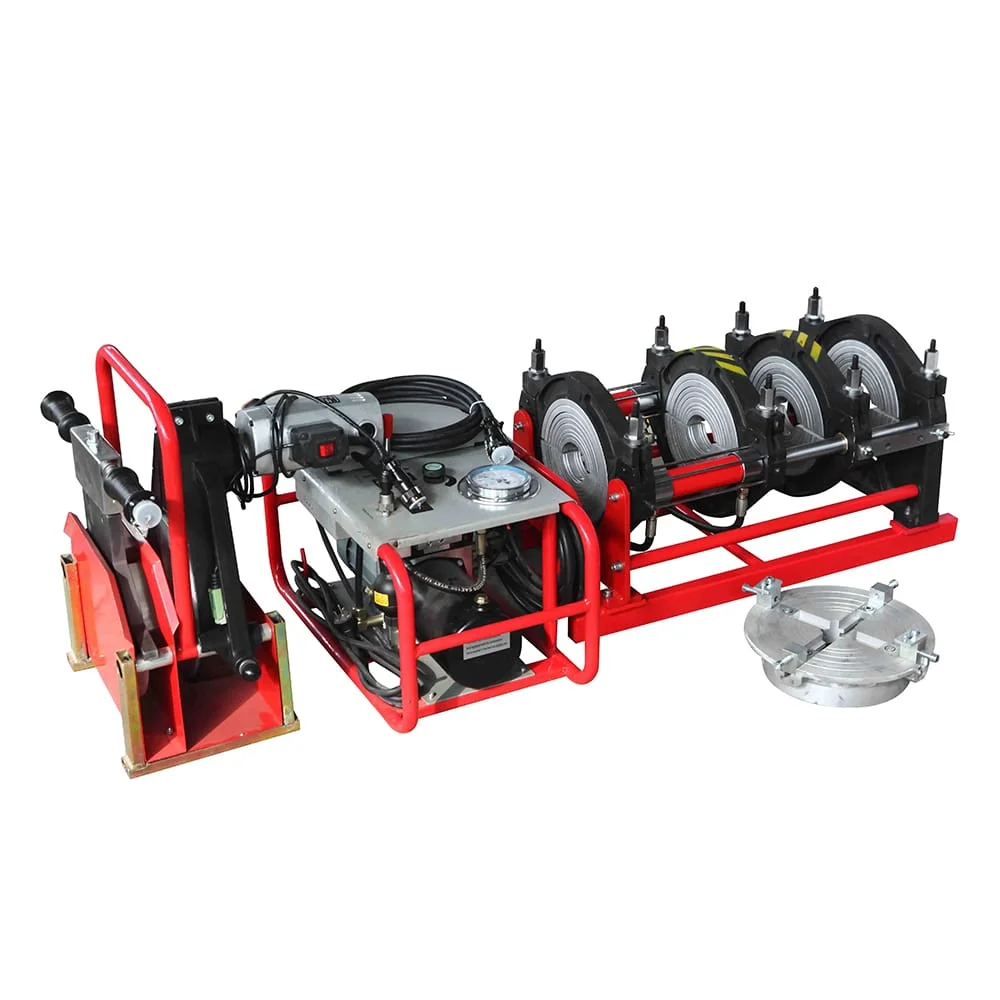

It has an electrohydraulic control unit, a removable PTFE-coated heating plate, a removable electric facing tool and an electronic countdown timer.
Key Features and Benefits
Three-phase supply
The machine operates on 380 V, 3-phase, 50/60 Hz.
Large-pipe range
Eight sizes run from 200 mm to 450 mm, for HDPE, PE, PP and PVDF pipe.
Heating plate
The removable PTFE-coated plate has electronic temperature control up to 270°C with a deviation of less than ±7°C.
Pressure and timing
The hydraulic unit adjusts pressure from 0 to 8 MPa, and an electronic countdown timer handles the heating and cooling times.
Facing tool

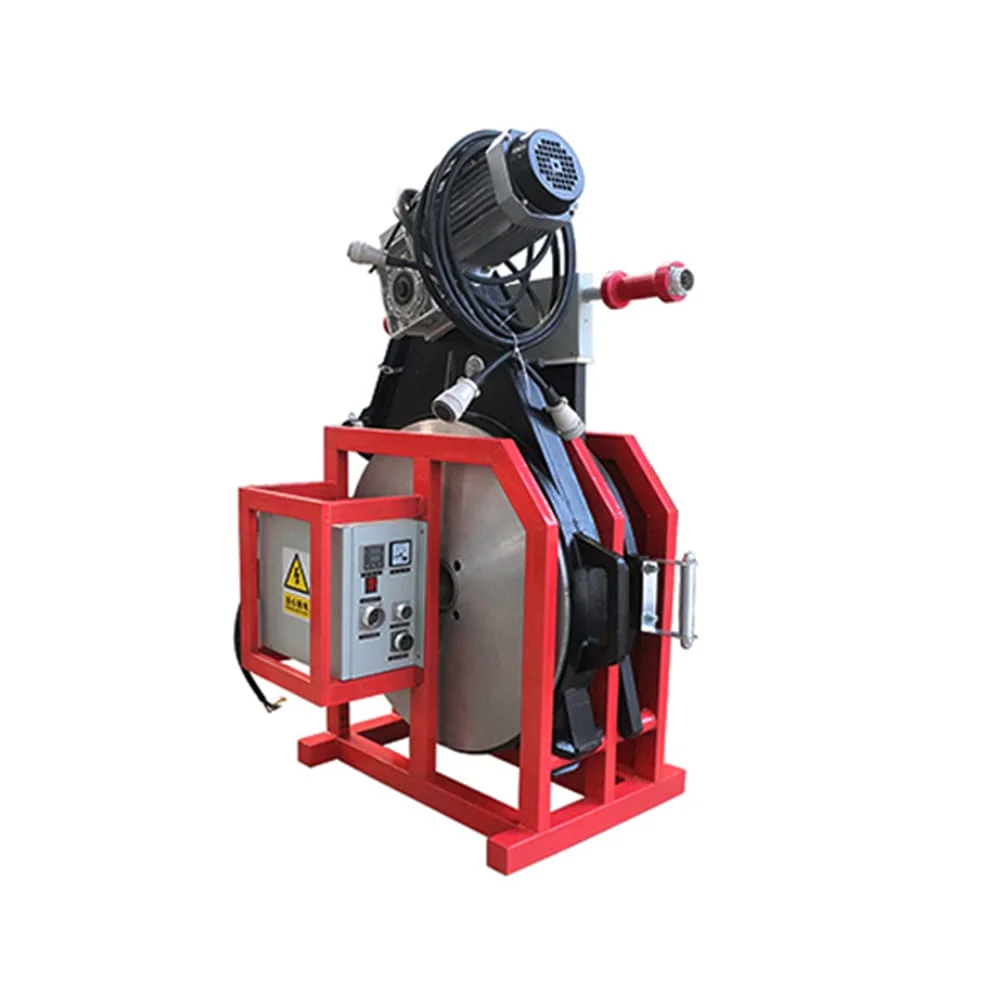

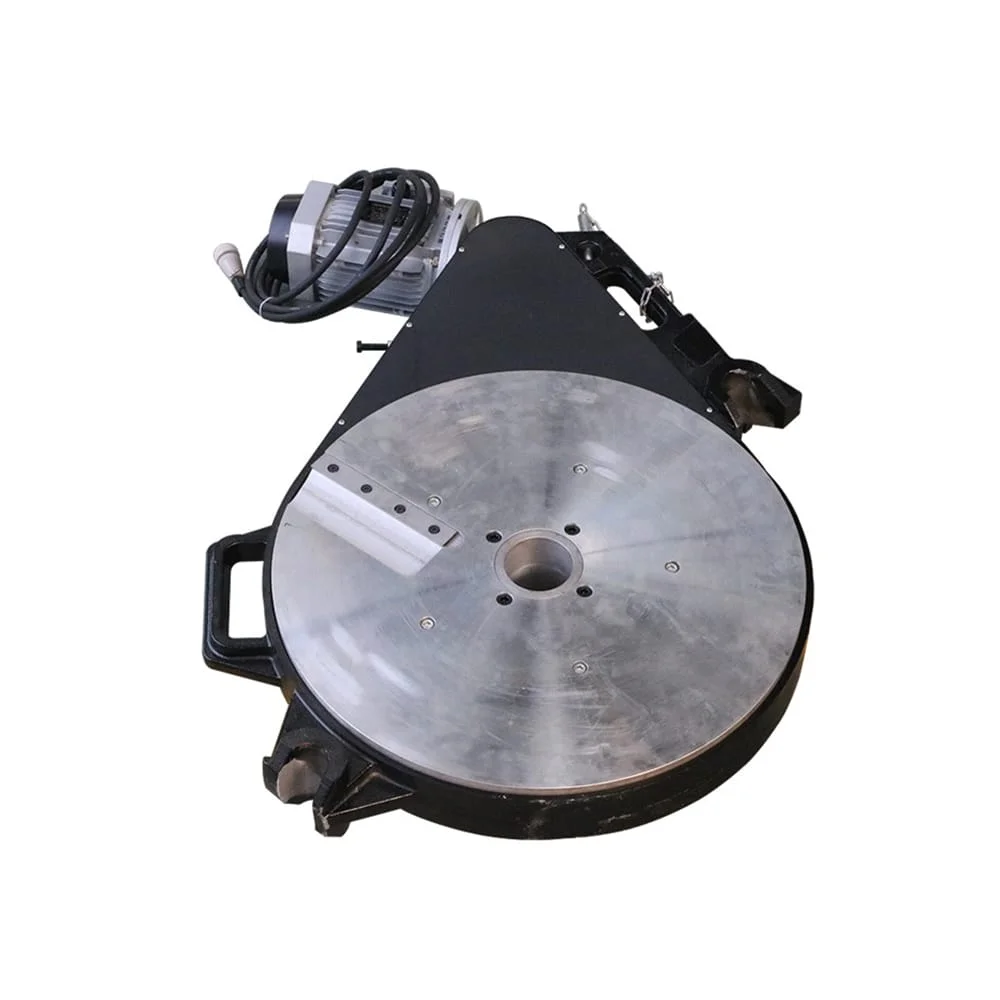

A removable electric facing tool prepares clean, parallel pipe ends before welding.
Applications and Use Cases
The Väli VPWS 450 is used for:
- Water supply and distribution networks
- Municipal sewage and wastewater systems
- Industrial pressure pipelines
- Large irrigation systems
Technical Specifications
Väli VPWS 450 technical data
- Model
- VPWS 450
- Pipe Welding Ranges
- 200, 225, 250, 280, 315, 355, 400, 450
- Working Voltage
- 380V, 3P, 50/60 Hz
- Heating Plate Max. Temp
- 270°C
- Deviation in Heating Plate Surface Temperature
- <±7°C
- Pressure Adjustment Ranges
- 0-8 Mpa
- Heating Plate Power
- 5.38KW
- Planning Tool Power
- 1.5KW
- Hydraulic Unit Power
- 1.5KW
- Total Power
- 8.38KW
Pipe welding ranges are nominal pipe diameters in mm, and Planning Tool Power is the power of the facing tool. The pressure range is the hydraulic unit setting and 270 °C is the heating plate maximum; fusion pressure and welding temperature follow the welding procedure for the pipe material, diameter and wall thickness.
Accessories available for this model: electric hoist, LDU data logger, flanges holder and trolley.
Request a quotation
Buy VPWS 450 from Global Source Middle East
The VPWS 450 needs a three-phase supply, so site power is the first thing to confirm. Buy the Väli VPWS 450 from Global Source Middle East. Send the pipe sizes and materials, the site power supply and any accessories for pricing and availability.
Frequently Asked Questions
What electrical supply does the VPWS 450 need?
380 V, three-phase, 50/60 Hz, with a total power of 8.38 kW.
Is the heating plate always at 270°C?
270 °C is the heating plate maximum. The welding temperature depends on the pipe material and the welding procedure.
Which accessories are available?
An electric hoist, LDU data logger, flanges holder and trolley are available for this model. Specify the ones you need with your order.
