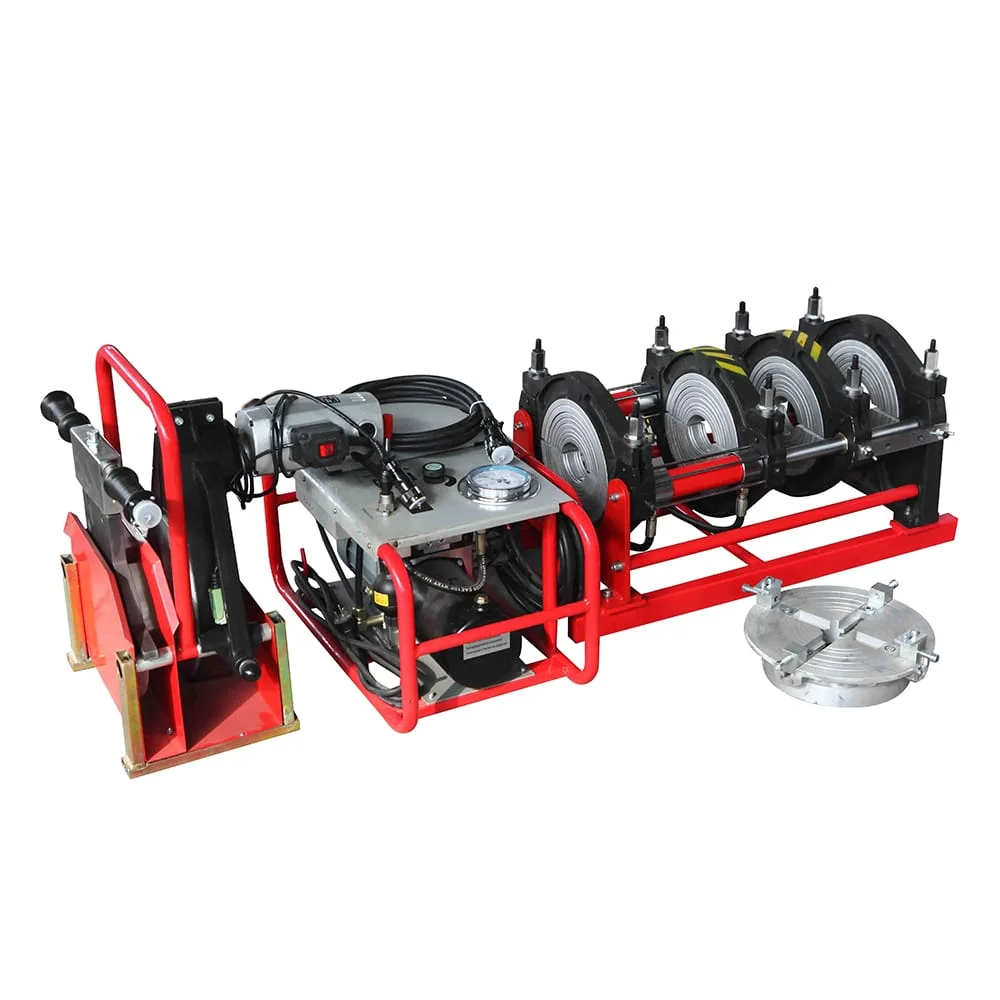

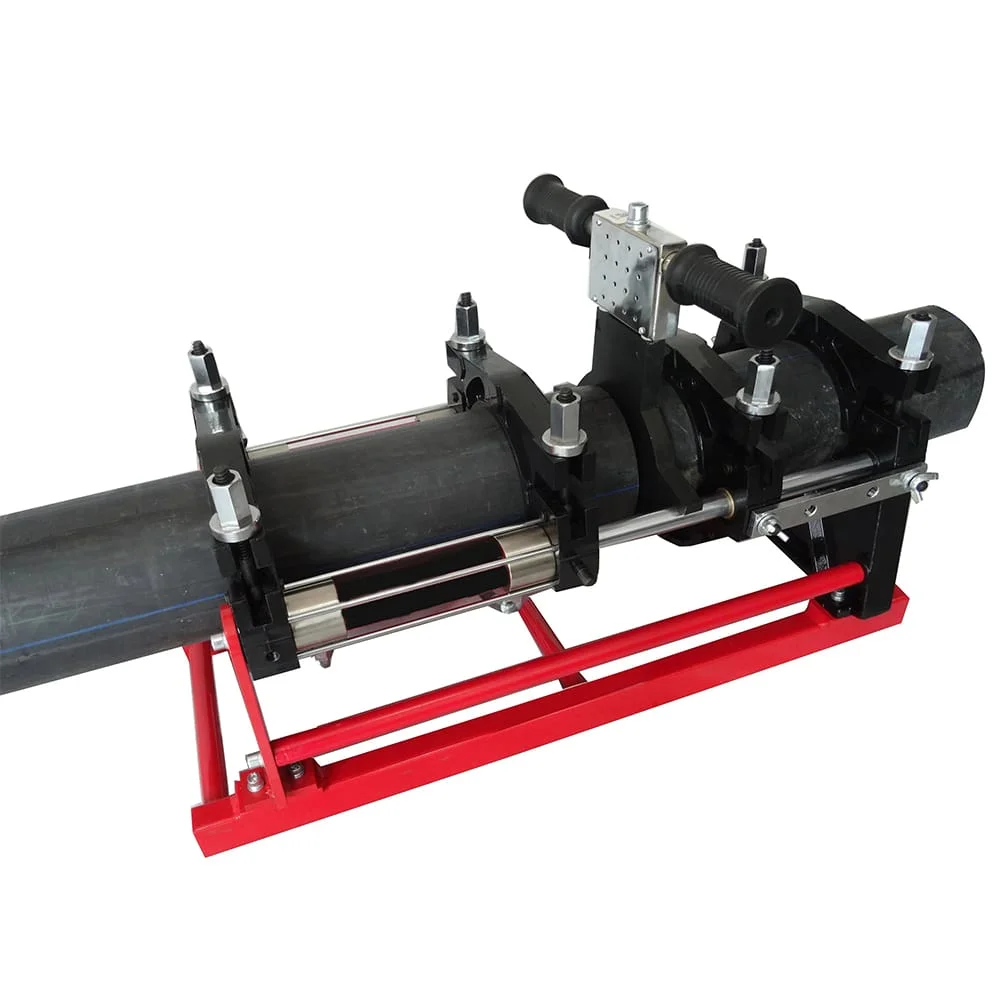

Väli VPWS 160 Automatic Butt Fusion Welding Machine, 50–160 mm
Compact automatic butt fusion machine for small-to-medium pipe from 50 to 160 mm, on a 220 V supply.
- Brand
- Väli
- Category
- Pipe Welding Equipment
- Model
- VPWS 160
- Type
- Individual product
- Pipe range 50 to 160 mm
- Eight pipe sizes
- 220 V, 50/60 Hz supply
- Total power 2.45 kW
- Hydraulic pressure range 0–7 MPa
- Lightweight, portable frame
Description
The Väli VPWS 160 is the smallest automatic butt fusion machine in the range, welding thermoplastic pipe and fittings from 50 mm to 160 mm. It has an electrohydraulic control unit, a PTFE-coated heating plate and a removable electric facing tool.
It has a 1.0 kW heating plate and a total power of 2.45 kW on a 220 V, 50/60 Hz supply. A flanges holder is available as an accessory.
Key Features and Benefits
Small-pipe range
Eight sizes run from 50 mm to 160 mm, for HDPE, PE, PP and PVDF pipe and fittings.
Heating plate
The PTFE-coated plate has adjustable temperature control up to 270°C with a deviation of less than ±5°C.
Low starting pressure
Low starting pressure in the electrohydraulic system suits small-diameter pipe and fittings.
Facing tool and timer
A removable electric facing tool prepares the pipe ends, and integrated electronic timers handle the cycle times.
Compact frame
The lightweight frame is easy to move between sites and set up in the workshop.
Applications and Use Cases
The Väli VPWS 160 is used for:
- Water supply and distribution networks
- Industrial fluid transport systems
- Wastewater and drainage systems
Technical Specifications
Väli VPWS 160 technical data
- Model
- VPWS 160
- Pipe Welding Ranges
- 50, 63, 75, 90, 110, 125, 140, 160
- Working Voltage
- 220V, 50/60 Hz
- Heating Plate Max. Temp
- 270°C
- Deviation in Heating Plate Surface Temperature
- <±5°C
- Pressure Adjustment Ranges
- 0-7 Mpa
- Heating Plate Power
- 1.0KW
- Planning Tool Power
- 0.7KW
- Hydraulic Unit Power
- 0.75KW
- Total Power
- 2.45KW
Pipe welding ranges are nominal pipe diameters in mm, and Planning Tool Power is the power of the facing tool. The pressure range is the hydraulic unit setting and 270 °C is the heating plate maximum; fusion pressure and welding temperature follow the welding procedure for the pipe material, diameter and wall thickness.
Accessory available for this model: flanges holder.
Request a quotation
Buy VPWS 160 from Global Source Middle East
The VPWS 160 is the entry point to the automatic range. Global Source Middle East supplies the Väli VPWS 160 to contractors, utilities and pipeline fabricators in the UAE. Send the pipe sizes and materials, the site power supply and any accessories for a quotation.
Frequently Asked Questions
What can the VPWS 160 weld?
HDPE, PE, PP and PVDF pipe and fittings from 50 to 160 mm: 50, 63, 75, 90, 110, 125, 140 and 160.
Which accessories are available?
A flanges holder for stub-end and short-spigot flanges.
Is the pressure range the fusion pressure?
No. The 0–7 MPa range is the hydraulic unit setting. Fusion pressure follows the welding procedure for the pipe material, wall thickness and diameter.
