G-Lift Hex Nuts for Tie Rods, 15 and 20 mm Bar
Hex nuts for steel tie rods in formwork and shuttering, for 15 mm and 20 mm bars.
- Brand
- G-Lift
- Type
- Individual product
- For 15 mm and 20 mm tie rods
- Five lengths from 50 to 130 mm
- Hex sizes of 30 and 36 mm
- Weights from 0.22 to 0.78 kg
- Alternative to wing nuts in narrow access
- Connection nut variant joins two tie rods
Description
G-Lift Hex Nuts for Tie Rods are used with steel tie rods in formwork and shuttering systems. The hexagonal shape gives a spanner grip in tight spaces, so the nut can be used in place of a wing nut where access is narrow.
Five items are listed for 15 mm and 20 mm bars, with the length, hex size and weight shown for each.
Key Features and Benefits

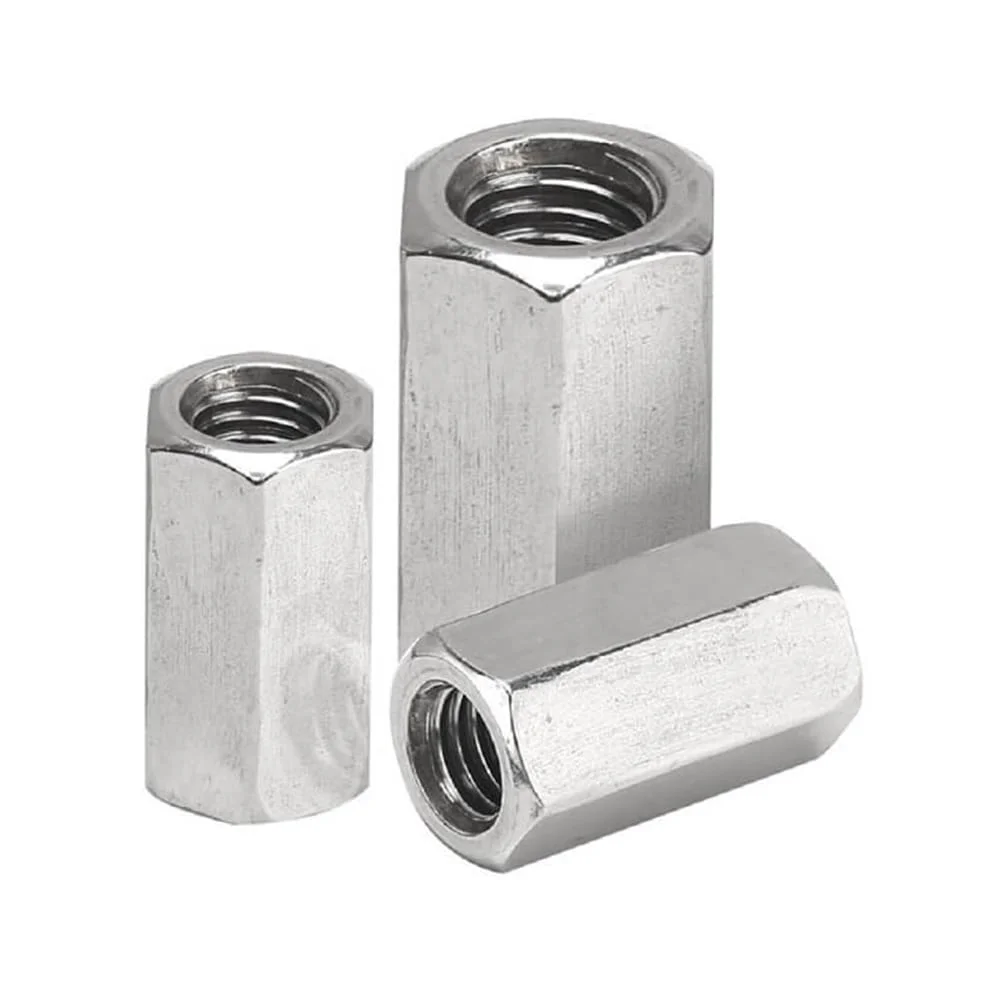

Hexagonal shape
The hex form allows tightening and loosening with a spanner where access is limited.
Alternative to wing nuts
The nut is an alternative to wing nuts where access is narrow.

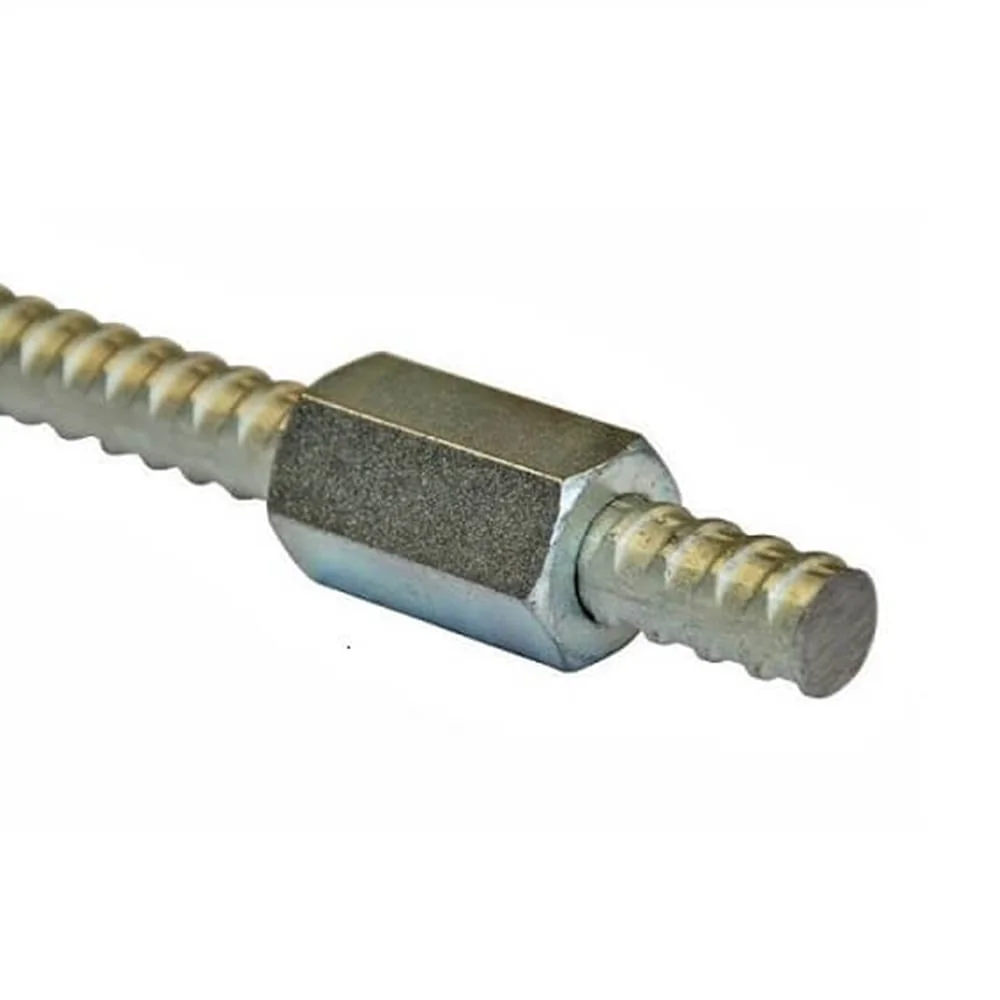

Connection nut variant
A connection nut variant joins two steel tie rods.
Listed weights
A weight is listed for each item, from 0.22 to 0.78 kg.
Applications and Use Cases
Hex Nuts for Tie Rods are used for:
- Tie rods in formwork for precast concrete
- Shuttering systems
- Fastening steel tie rods during concrete pouring
Technical Specifications
| Item No. | Bar Dia. (mm) | Length (mm) | Hex. (mm) | Weight (Kg) |
|---|---|---|---|---|
| GSHN50 | 15 | 50 | 30 | 0.22 |
| GSHN60 | 15 | 60 | 30 | 0.25 |
| GSHN100 | 20 | 100 | 36 | 0.60 |
| GSHN110 | 20 | 110 | 36 | 0.66 |
| GSHN130 | 20 | 130 | 36 | 0.78 |
Match the nut to the bar diameter and thread of the tie-rod system in use.
Request a quotation
Buy Hex Nuts for Tie Rods from Global Source Middle East
A tie-rod nut must match the bar diameter and thread of the tie-rod system in use. Buy G-Lift Hex Nuts for Tie Rods from Global Source Middle East for formwork and shuttering work. Send the bar diameters, lengths and quantities for a quotation.
Frequently Asked Questions
Which bar diameters are covered?
15 mm and 20 mm.
Is a connection nut available?
The connection nut joins two tie rods. Tell us you need the connection type when you order and we will supply the matching item.
How do I choose the right nut?
Match the nut to the bar diameter and the tie-rod system so it carries the system rating.
