GSPF Tower Spacers (Four-Legged Spacers) for Reinforcement Cover
Four-legged polymer spacers that give multi-directional support to reinforcement and reduce the amount of metal tying.
- Brand
- GSPF
- Category
- Rebar Spacers & Accessories
- Type
- Individual product
- Four-legged design for multi-directional support
- Used for horizontal and vertical reinforcement
- Reduces dependence on metal binding wire
- Five cover sizes from 20 to 60 mm
- Steel bar diameters from 6 to 20 mm
- Packed 750 to 1500 pieces by size
Description

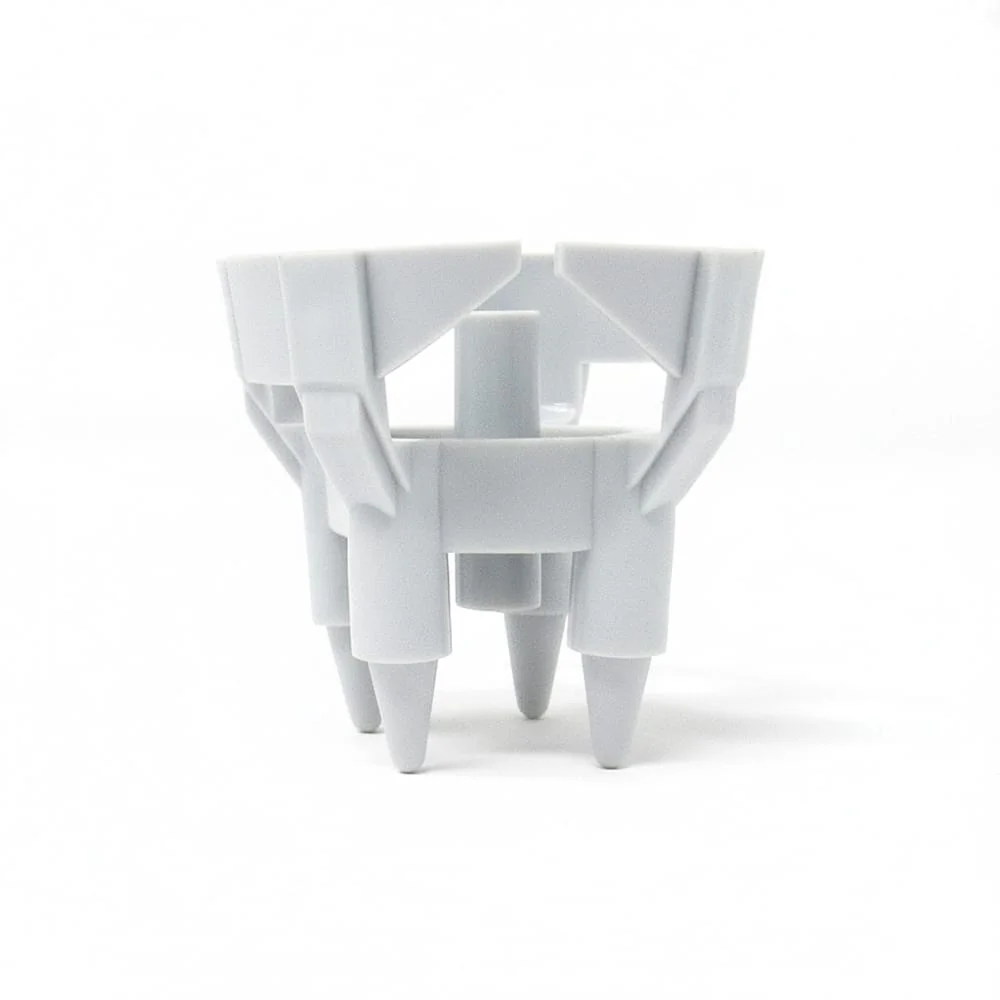

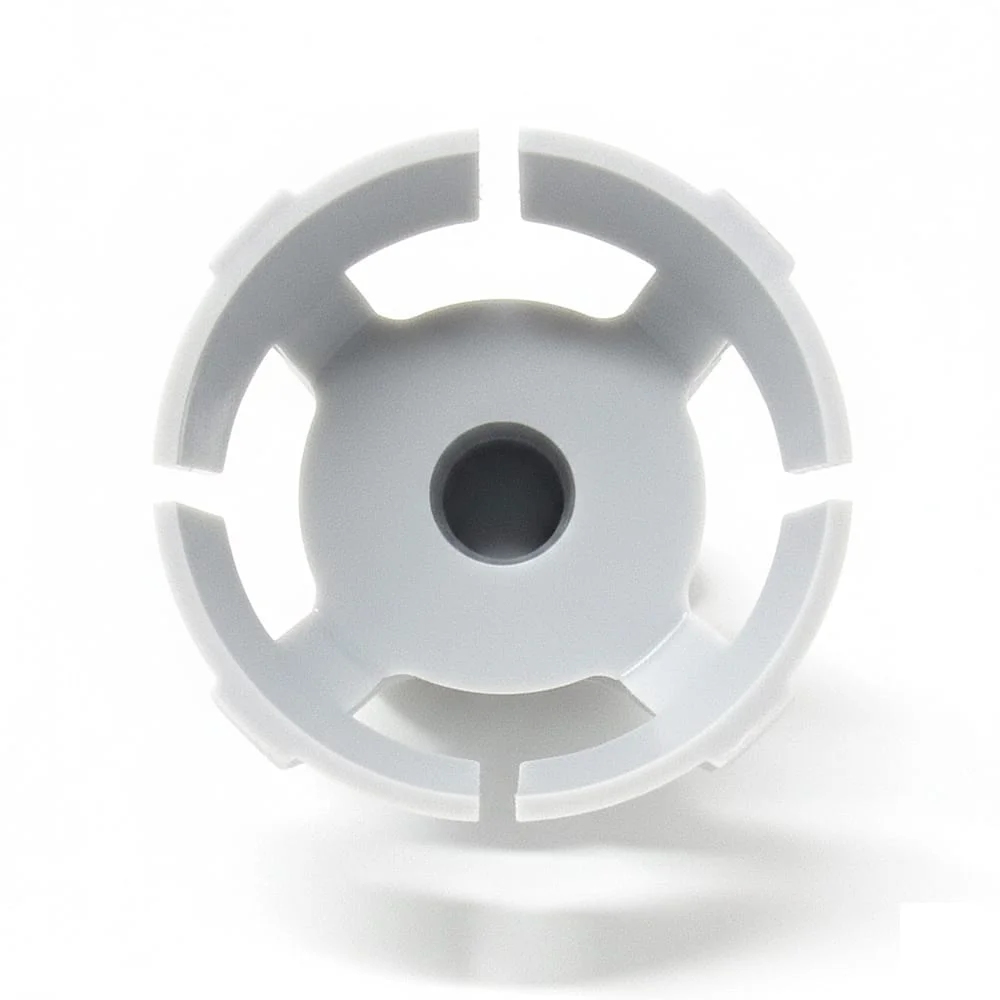

GSPF Tower Spacers, also called four-legged spacers, stand on four legs and support reinforcement from several directions. They are used in precast and cast-in-place concrete to hold bars at a set cover.
The four-leg geometry gives stable seating, so the spacer is less likely to move during handling and concrete placement. GSPF notes that it reduces the need for metal tying, which can save time on site.
Key Features and Benefits
Four legs, stable seating
The legs give the spacer a stable base and support in several directions, for both horizontal and vertical reinforcement.
Less metal tying
The design reduces dependence on metal binding wire, which simplifies installation.
Wide bar range
All listed covers are for steel bars from 6 mm to 20 mm, so mixed rebar diameters can use the same product.

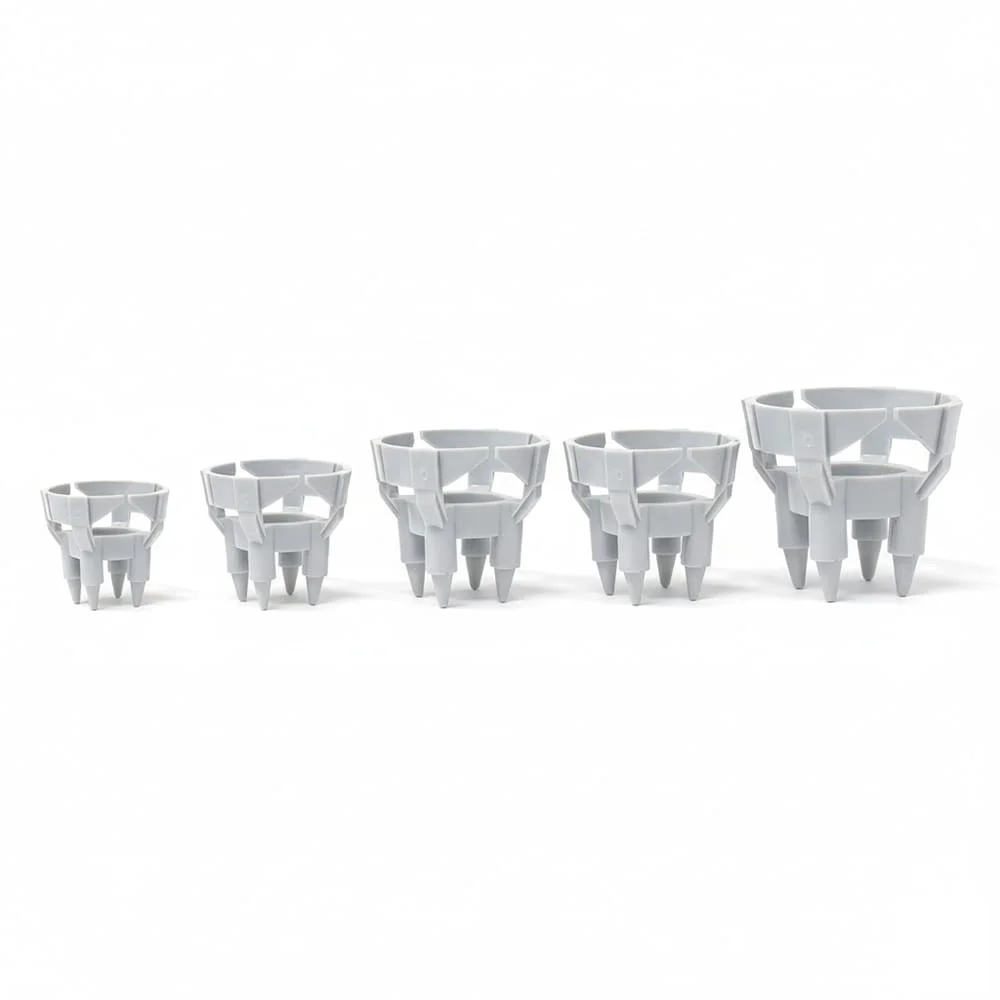

Five cover heights
Cover sizes run from 20 mm to 60 mm.
Applications and Use Cases
Tower Spacers are used for:
- Precast element assembly where cover must be repeatable
- Cast-in-place slabs, beams and columns
- Work where reducing metal binding wire improves productivity and safety
- Architectural precast elements that need minimal movement
- Projects with mixed rebar diameters
- Industrial and commercial builds
Technical Specifications
| Product Code | Cover (mm) | Steelbar (mm) | Packing (pcs) |
|---|---|---|---|
| GFLS20 | 20 | 6-20 | 1500 |
| GFLS30 | 30 | 6-20 | 1000 |
| GFLS40 | 40 | 6-20 | 1000 |
| GFLS50 | 50 | 6-20 | 750 |
| GFLS60 | 60 | 6-20 | 750 |
Request a quotation
Buy Tower Spacers from Global Source Middle East
On mats of reinforcement with mixed bar sizes, a spacer that works across the range and stays put without wire ties keeps the crew moving. Global Source Middle East supplies GSPF Tower Spacers to contractors and precast producers in the UAE. Send the cover and the element type, and we will quote the product codes and pack quantities.
Frequently Asked Questions
Why are they called four-legged spacers?
Tower Spacers and four-legged spacers are two names for the same GSPF product.
Which bars do they fit?
All listed covers are for steel bars from 6 to 20 mm.
Do they replace tie wire completely?
They reduce dependence on metal binding wire. Fix the reinforcement as your project specification requires.
