GSPF Pile Cage Spacers for Bored Pile Reinforcement Cages
Heavy-duty wheel spacers that keep concrete cover on pile reinforcement cages as they are lowered into the bore.
- Brand
- GSPF
- Category
- Rebar Spacers & Accessories
- Type
- Individual product
- Wheel design for deep foundation and piling work
- Fits both helical and main reinforcement bars
- Cover sizes of 75 and 100 mm
- Bar sizes of 8 to 18 mm, or 14 mm
- High-strength polymer construction
- Packed 70 to 100 pieces by size
Description

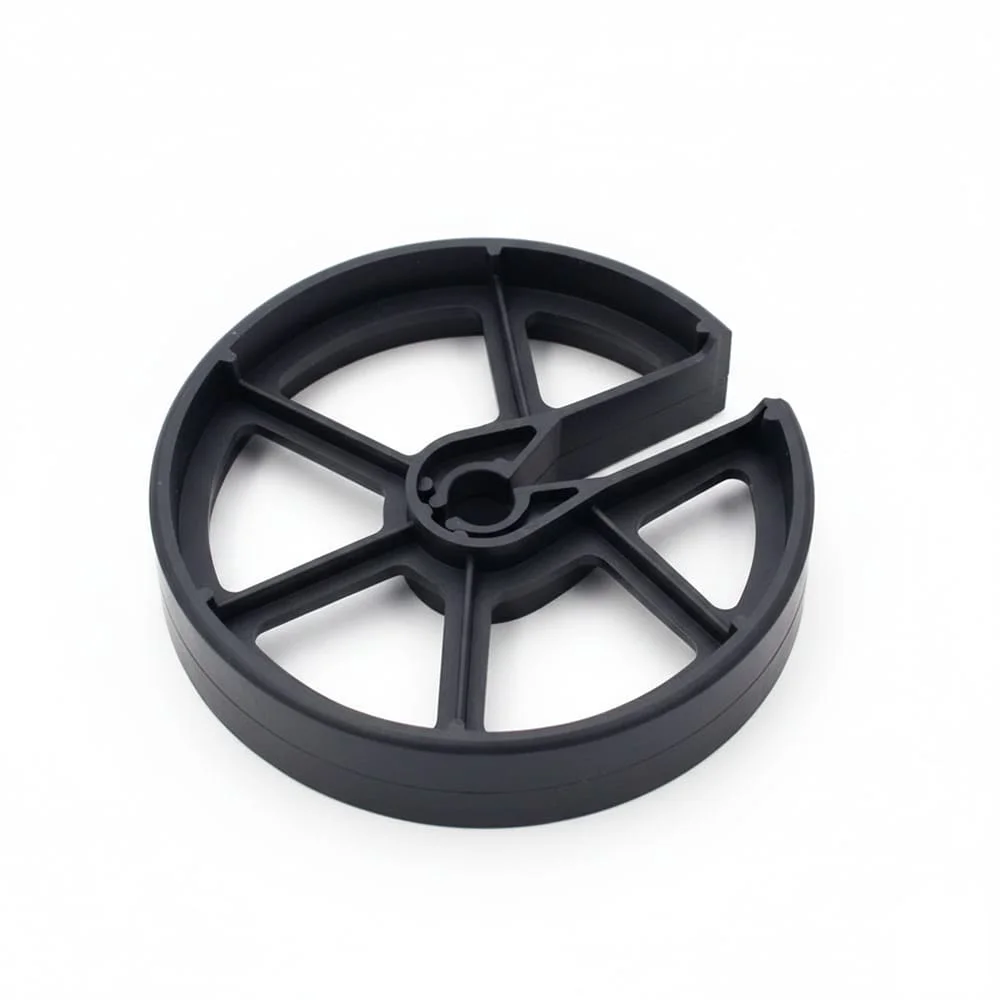

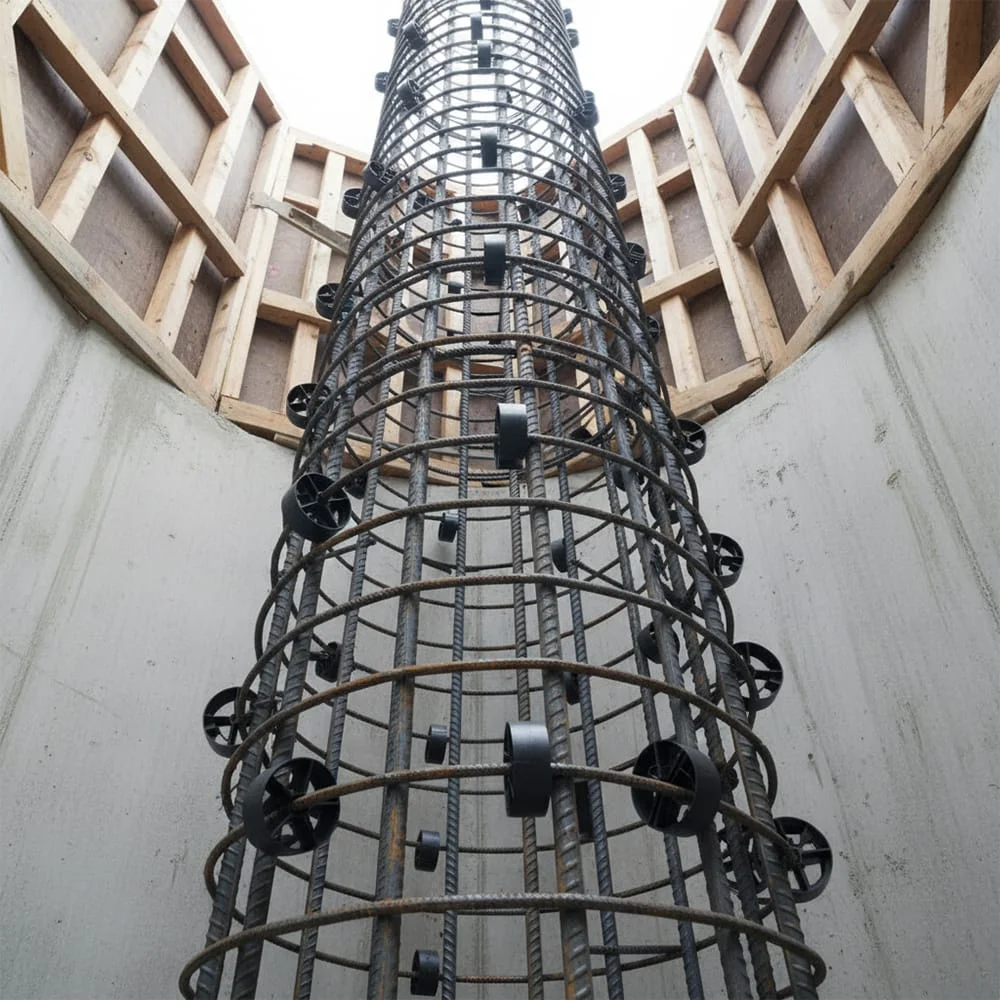

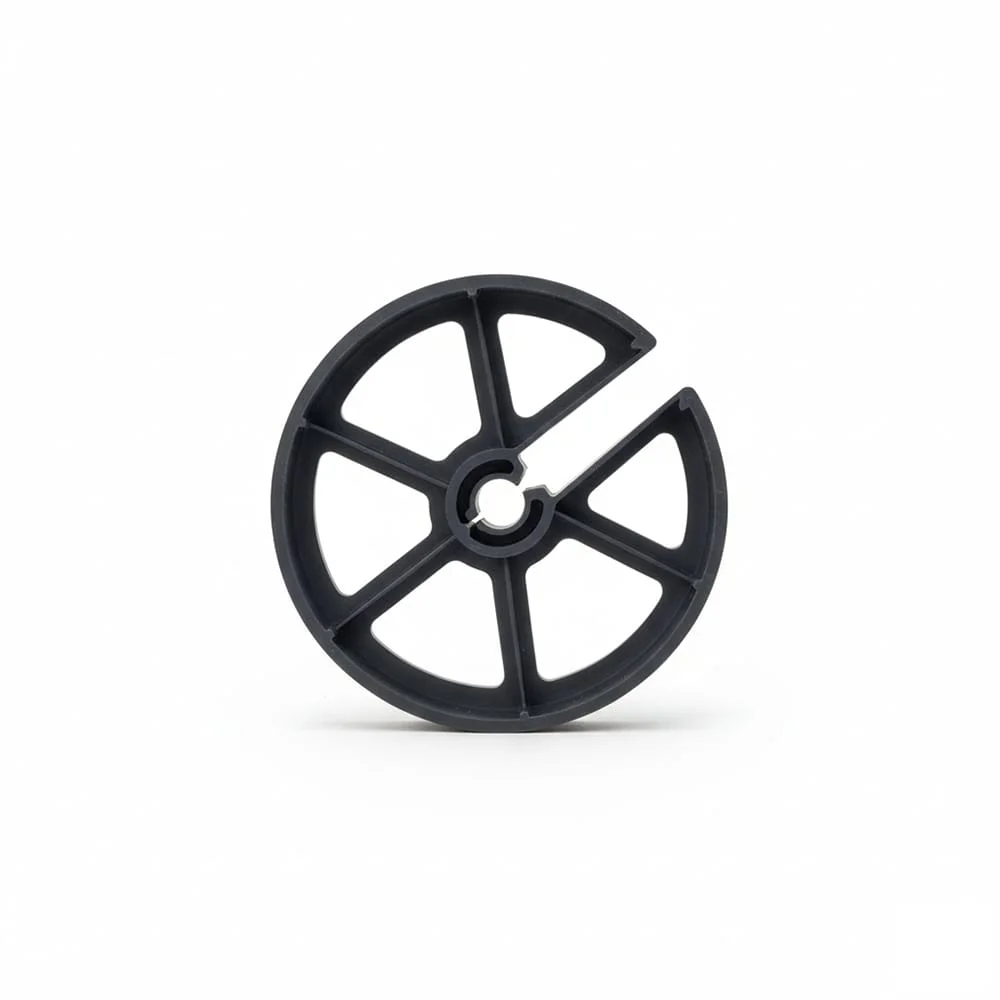

GSPF Pile Cage Spacers are wheel-type spacers made for the reinforcement cages used in deep foundations. Fitted to the cage, they keep the cover to the pile bore as the cage is lowered, so the concrete can surround the reinforcement.
They can be placed on the helical (spiral) bars or on the main bars. Several versions are available, with two cover sizes and a choice of bar ranges, so the product code is matched to the cage design.
Key Features and Benefits
Wheel structure for cage lowering
The wheel structure is designed to hold accurate cover and keep the reinforcement aligned during handling and cage lowering.
Helical or main bars
The spacers are made to be attached to both helical and main reinforcement.
Two covers, several bar options
Cover is 75 mm or 100 mm. Two codes suit 8 to 18 mm bars, and two a fixed 14 mm bar.
Polymer built for site conditions
High-strength polymer construction is intended to withstand the conditions of excavation and piling work.
Applications and Use Cases
Pile Cage Spacers are used for:
- Deep pile foundations and bored piles
- Helical and main bar reinforcement cages
- Infrastructure foundations such as bridges, flyovers and tunnels
- High-rise and heavy load-bearing structural bases
- Industrial construction needing precise reinforcement positioning
- Projects with strict concrete cover requirements
Technical Specifications
| Product Code | Cover (mm) | Steelbar (mm) | Packing (pcs) |
|---|---|---|---|
| GPCS75V | 75 | 8-18 | 100 |
| GPCS100V | 100 | 8-18 | 70 |
| GPCS75O | 75 | 14 | 100 |
| GPCS100O | 100 | 14 | 75 |
Request a quotation
Buy Pile Cage Spacers from Global Source Middle East
On a bored pile, the cover is set before the concrete arrives and cannot be corrected afterwards, so the spacers on the cage have to be right first time. Buy GSPF Pile Cage Spacers from Global Source Middle East for bored pile work in the UAE. Send the pile cover, bar size and whether the spacers go on helical or main bars, and we will quote the matching codes.
Frequently Asked Questions
How do these differ from the Heavy-Duty Closed-Type Pile Cage Spacers?
The closed-type heavy-duty version is a separate product with a reinforced closed wheel, listed for 75 and 100 mm cover and 8 to 18 mm bars. Its specifications are not interchangeable with these.
Which bar size should I choose?
Two codes suit 8 to 18 mm bars and two a fixed 14 mm bar. Choose the code that matches your cage reinforcement.
Can they go on spiral bars?
Yes. They suit both helical and main reinforcement bars.
