G-Lift Lifting Sockets, Rd 12 to Rd 52
Cast-in lifting sockets with a cross-hole for reinforcement bar and a plastic stopper that keeps concrete out of the thread.
- Brand
- G-Lift
- Category
- Precast Lifting Systems
- Type
- Individual product
- Eight round-thread sizes, Rd 12 to Rd 52
- Cross-hole takes a reinforcement bar
- Pressed-plastic stopper protects the thread
- Safe Load from 500 to 12,500 kg
- For walls, slabs, beams and pipes
- Dimensions h, e and a listed per size
Description

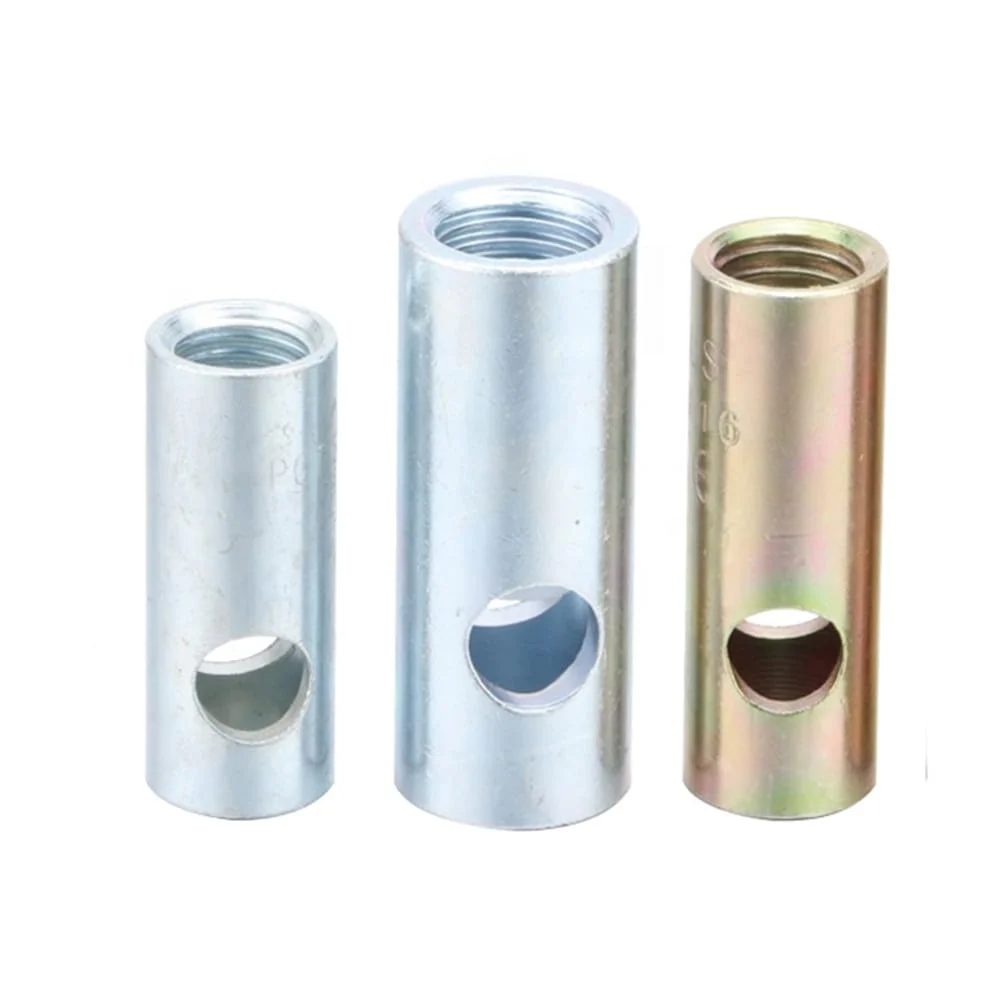

G-Lift Lifting Sockets are steel sockets cast into precast concrete elements to provide a threaded point for lifting. Each socket has a cross-hole through which a reinforcement bar is placed, so the load is carried into the concrete unit, and a pressed-plastic stopper keeps concrete out of the thread during casting.
The range covers eight round-thread sizes from Rd 12 to Rd 52, with height, width and depth dimensions for each size.
Key Features and Benefits
Cross-hole for reinforcement bar
A cross-hole in each socket accommodates a reinforcement bar, which ties the socket into the reinforcement of the concrete unit.
Pressed-plastic stopper
The stopper prevents concrete from entering the thread while the element is cast, so the thread is clean when the lifting accessory is fitted.
Eight sizes
Rd 12 to Rd 52, with dimensions h, e and a and a Safe Load figure for each size.
Wide element range
Suitable for precast walls, slabs, beams and pipes.
Applications and Use Cases
Lifting Sockets are used for:
- Precast wall panels
- Floor slabs and beams
- Precast pipes
- Industrial precast components
Technical Specifications
| Thread Size | h (mm) | e (mm) | a (mm) | Safe Load (kg) |
|---|---|---|---|---|
| Rd 12 | 40 | 22 | 8 | 500 |
| Rd 16 | 54 | 27 | 13 | 1200 |
| Rd 20 | 69 | 35 | 15.5 | 2000 |
| Rd 24 | 78 | 43 | 18 | 2500 |
| Rd 30 | 103 | 56 | 22.5 | 4000 |
| Rd 36 | 125 | 68 | 27.5 | 6300 |
| Rd 42 | 145 | 80 | 32 | 8000 |
| Rd 52 | 195 | 100 | 40 | 12500 |
Safe Load values are per socket. Select the size against the lifting design for the element, which sets the load, the concrete strength and the reinforcement.
Request a quotation
Buy Lifting Sockets from Global Source Middle East
Lifting sockets are matched to the thread of the lifting accessory and the weight and strength of the element. Global Source Middle East supplies G-Lift Lifting Sockets to precast producers and contractors across the UAE. Send the thread sizes, element types and loads, and we will quote the matching sockets.
Frequently Asked Questions
Which thread sizes are available?
Rd 12, 16, 20, 24, 30, 36, 42 and 52.
Is the Safe Load the same for every use?
The table gives one Safe Load figure per size. The load for a specific lift comes from the lifting design for the element.
What does the plastic stopper do?
It keeps concrete out of the thread while the element is cast.
